Safety Belt Retractor and Pretensioner: Removal
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may include installation details.
Both Sides
- 1.
Depower the SRS. For additional information, refer to Supplemental Restraint System .
- 2.
Remove the B-pillar trim panel. For additional information, refer to Interior Trim and Ornamentation .
LH Side
- 3.
If equipped, remove the power running board module. For additional information, refer to Exterior Trim and Ornamentation .
Both Sides

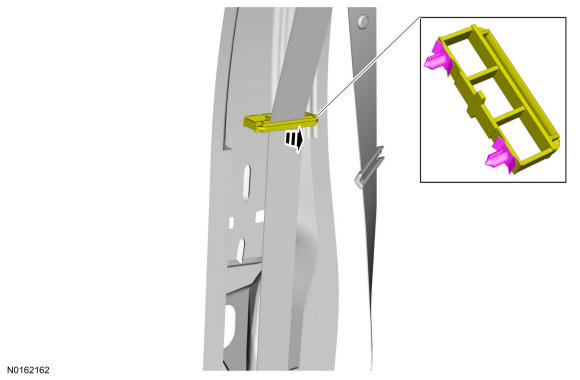

- 5.
- 1.

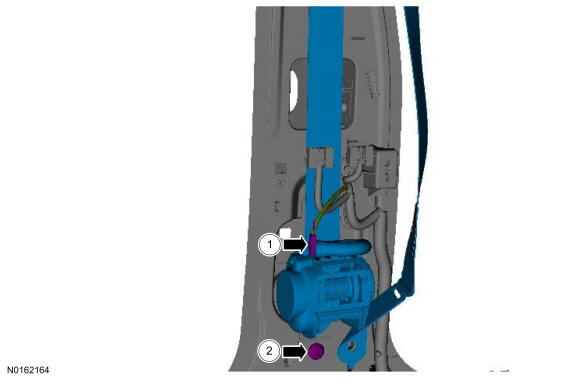

Disconnect the safety belt electrical connector.
- 2.
Remove the bolt and the safety belt retractor and pretensioner.- To install, tighten to 40 Nm (30 lb-ft).
- 1.
