Safety Belt Buckle - Second Row, 40 Percent Seat: Notes

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RH shown, LH similar.

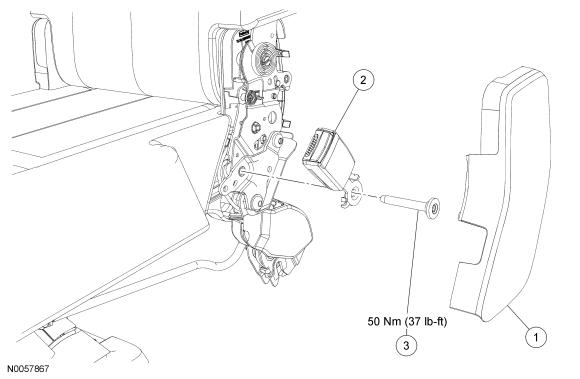

Fig 1: Safety Belt Buckle (Second Row, 40 Percent Seat) With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	666L76	Side shield
2	613D98	Safety belt buckle
3	-	Safety belt buckle bolt (part of 613D98)
