Safety Belt Buckle - Front: Removal

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may include installation details.

NOTE: LH shown, RH similar.

1.

Remove the front seat. For additional information, refer to Seating .

2.

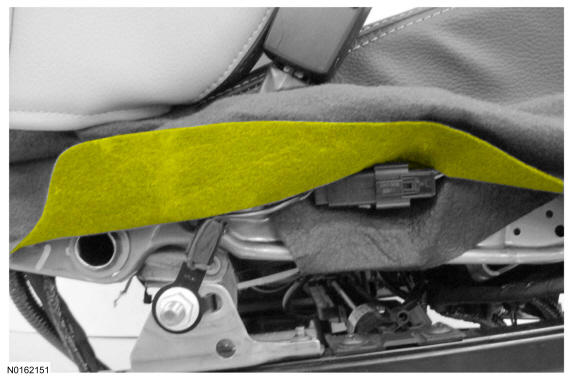

Position the seat cushion cover up.

Courtesy of FORD MOTOR COMPANY

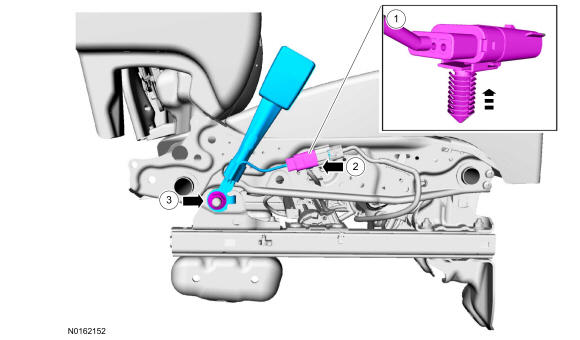

3.
- 1.

  Release the pin-type retainer.
- 2.

  Disconnect the electrical connector.
- 3.

  Remove the nut and the front safety belt buckle.
  - To install, tighten to 55 Nm (41 lb-ft).

Courtesy of FORD MOTOR COMPANY
