Wiper Motor - Rear Window: Installation

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

If installing a new rear wiper motor, install the liftgate window glass latch.
1. 1.

  Tighten bolts to 8 Nm (71 lb-in).

Courtesy of FORD MOTOR COMPANY

2.

NOTE: An audible click should be heard as the striker engages the latch.

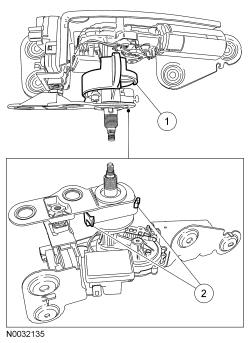

Push the rear window wiper striker and pivot shaft assembly into the wiper motor. The pivot shaft pin should be aligned with the hole in the motor disc.

Courtesy of FORD MOTOR COMPANY

3.

Install the rear window wiper motor alignment tool. If installing a new rear wiper motor, one is provided with the motor assembly.
1. 1.

  Make sure the alignment tool fits over the motor disc and striker assembly.
1. 2.

  Make sure the alignment tool clips are securely engaged.

Courtesy of FORD MOTOR COMPANY

4.

Install the rear wiper motor.
1. 1.

  Tighten the bolts to 11 Nm (97 lb-in).
1. 2.

  Connect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

5.

Carefully close the liftgate glass.

6.

Open the liftgate. Install the rear window wiper striker and wiper pivot arm mounting assembly nuts.
- Tighten to 6 Nm (53 lb-in).

Courtesy of FORD MOTOR COMPANY

7.

Close the liftgate.

8.

Install the rear window glass handle and nut.
- Tighten to 18 Nm (159 lb-in).

Courtesy of FORD MOTOR COMPANY

9.

Install the dust boot cover.

Courtesy of FORD MOTOR COMPANY

10.

Install the rear wiper pivot arm. For additional information, refer to Wiper Pivot Arm - Rear .

11.

Open the liftgate.

12.

Remove the rear window wiper motor aligning tool.

Courtesy of FORD MOTOR COMPANY

13.

Open the liftgate glass.

14.

Install the liftgate trim panel. Refer to Interior Trim and Ornamentation .

15.

Test the liftgate and liftgate glass for normal operation.
