Removal And Installation

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When servicing the windshield washer pump, be careful not to damage the windshield washer pump seal.

NOTE: Do not operate the windshield washer pump before filling the windshield washer reservoir. Failure to do so may result in premature pump failure.

1.

Remove the battery tray. For additional information, refer to. Charging System (Battery, Battery Mounting And Battery Cables)

2.

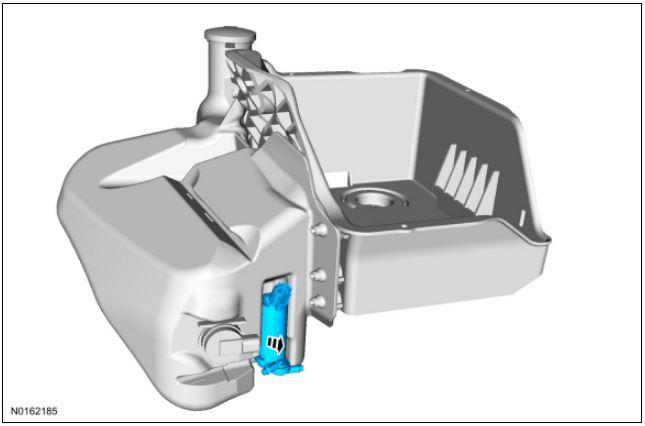

Remove the washer pump.

3.

To install, reverse the removal procedure.
