Fender Splash Shield

Vehicles with power running boards

• 1.


  WARNING: Turn off (disable) the power running boards (if equipped) before jacking, lifting or placing any object under the vehicle. Never place your hand between the power running board and the vehicle. Extended power running boards will retract when doors are closed. Failure to follow these instructions may result in serious personal injury.

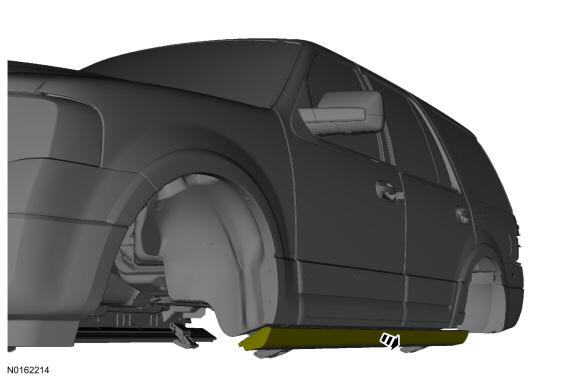

  Lower the running boards.

Courtesy of FORD MOTOR COMPANY

All vehicles

• 2.

  Remove the tire and wheel. For additional information, refer to Wheels and Tires .

• 3.

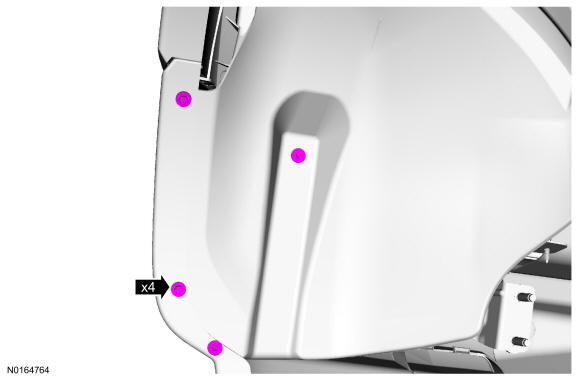

  Remove the pin-type retainers.

Courtesy of FORD MOTOR COMPANY

• 4.

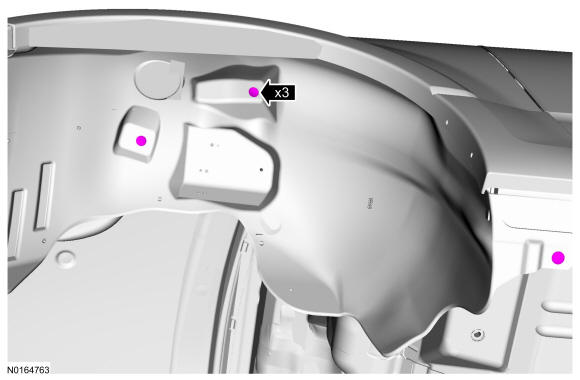

  Remove the front screws.

Courtesy of FORD MOTOR COMPANY

• 5.

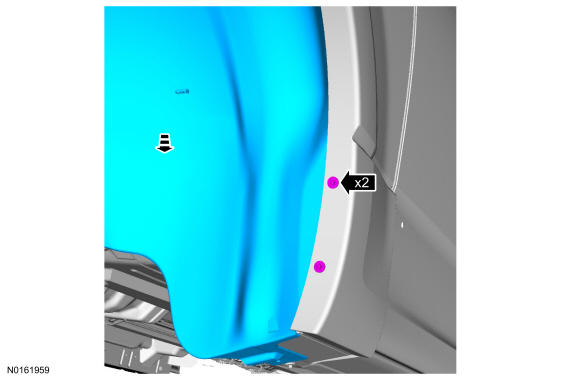

  Remove the inner screws.

Courtesy of FORD MOTOR COMPANY

• 6.

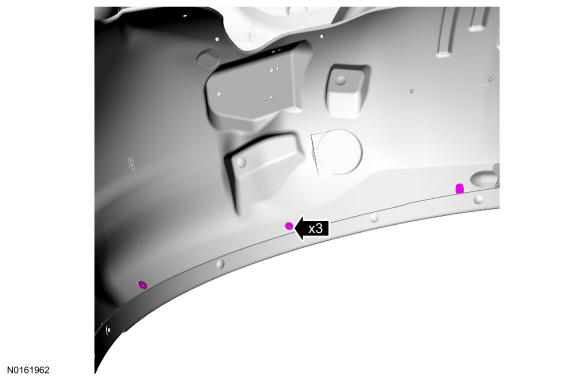

  Remove the lower screws and the fender splash shield.

Courtesy of FORD MOTOR COMPANY

• 7.

  To install, reverse the removal procedure.
