Temperature Blend Door Actuator - Passenger Side: Removal
WARNING: This page is about a different car, the 2017 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
Vehicles with AM/FM only
- 1.
Remove the audio control module (ACM). Refer to, Information and Entertainment Systems - AM/FM/CD .
Vehicles with Front Controls/Display Interface Module
- 2.
Remove the front controls/display interface module (FCDIM). Refer to, Information and Entertainment Systems - 4.2-Inch (107 mm) Screen, AM/FM CD Sync , Information and Entertainment Systems - Sony Audio System or Information and Entertainment Systems - THX Audio System .
All Vehicles
- 3.

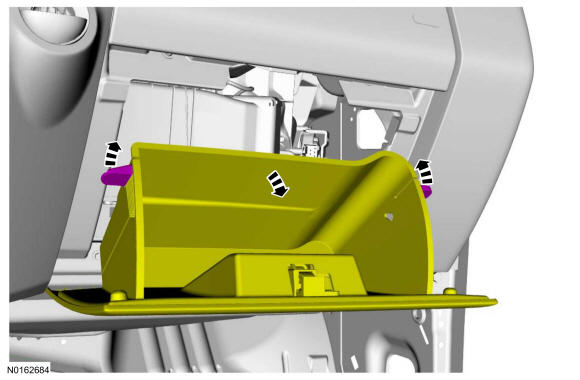

Lower the glove compartment.- While pushing the glove compartment door tabs, position the glove compartment downward.
- 4.NOTE: The forward passenger temperature blend door actuator screw can be removed with a combination wrench. With one hand working through the ACM opening, hold the top end of the combination wrench. With the other end of the combination wrench pointing away (toward the right front corner of the vehicle), and with the other hand working through the glove compartment opening, the combination wrench can be manipulated.
Remove the passenger temperature blend door mode door actuator.

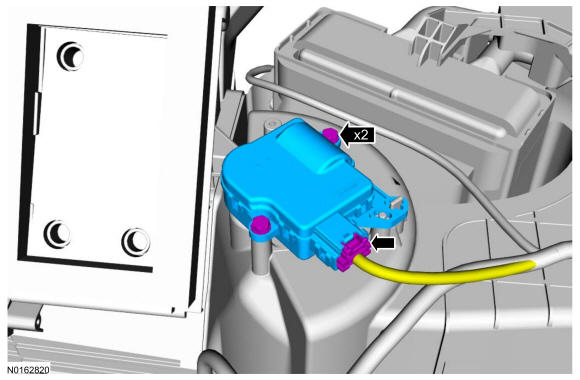

- 1.
Disconnect the passenger temperature blend door mode door actuator electrical connector.
- 2.
Remove the screws and the passenger temperature blend door mode door actuator.
