Footwell Duct - Rear: Removal

WARNING: This page is about a different car, the 2017 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the front seats. Refer to Seating .

2.

Remove the front floor console. Refer to Instrument Panel and Console .

3.

NOTE: Drive side shown, passenger side similar.

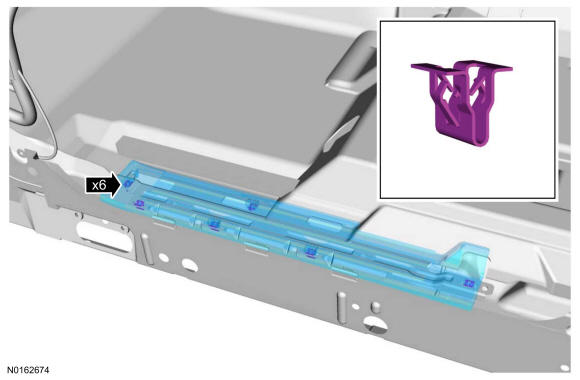

Remove the driver side and passenger side lower cowl trim panels and front door sill plates.

Courtesy of FORD MOTOR COMPANY

4.

NOTE: Navigator shown, Expedition similar.

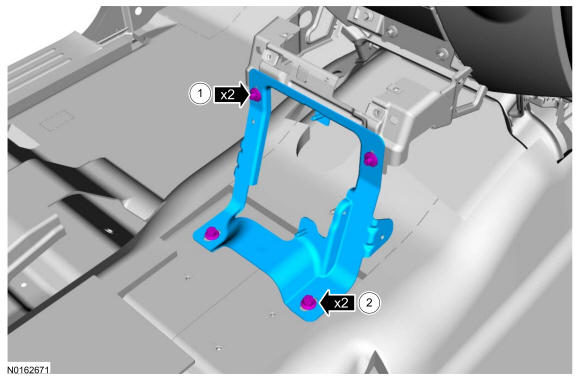

Remove the upper and lower instrument panel bracket bolts and position the instrument panel bracket aside.
- 1.

  Tighten to 9 Nm (7 lb-ft).
- 2.

  Tighten to 40 Nm (30 lb-ft).

Courtesy of FORD MOTOR COMPANY

5.

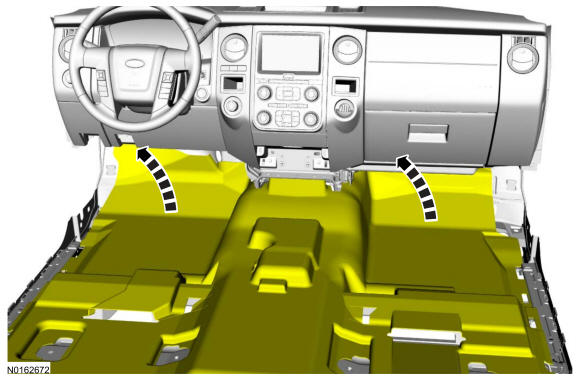

Fold back the carpet to completely uncover the rear footwell duct.

Courtesy of FORD MOTOR COMPANY

6.

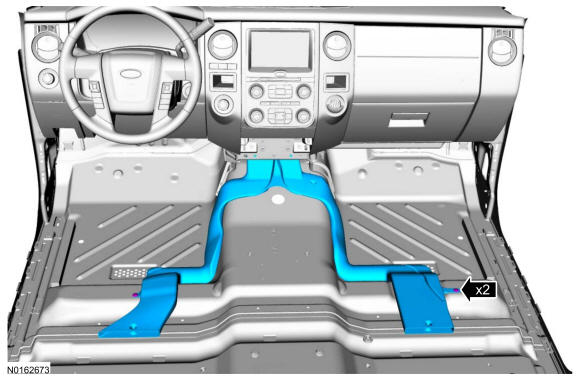

Remove the rear footwell duct pin-type retainers and remove the rear footwell duct.

Courtesy of FORD MOTOR COMPANY
