Air Conditioning (A/C) Pressure Relief Valve: Removal
WARNING: This page is about a different car, the 2017 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
With the vehicle in NEUTRAL, position it on a hoist. Refer to Jacking and Lifting .
- 2.
Recover the refrigerant. Refer to Climate Control System General Information and Diagnostics .
- 3.NOTE: Make sure that all openings are sealed.

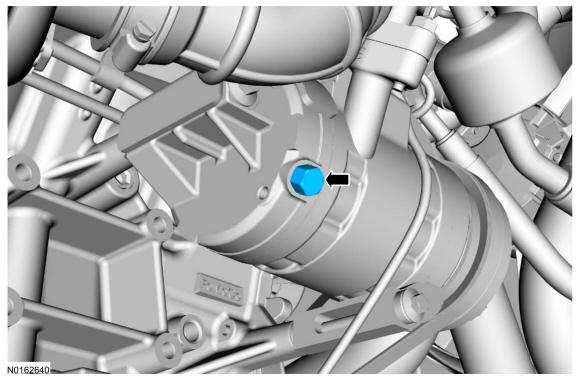

Remove the Air Conditioning (A/C) compressor pressure relief valve and O-ring seal.
- Tighten to 10 Nm (89 lb-in).
