Window Glass - Liftgate: Notes
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
| Motorcraft ® Threadlock 262TA-26 | WSK-M2G351-A6 |

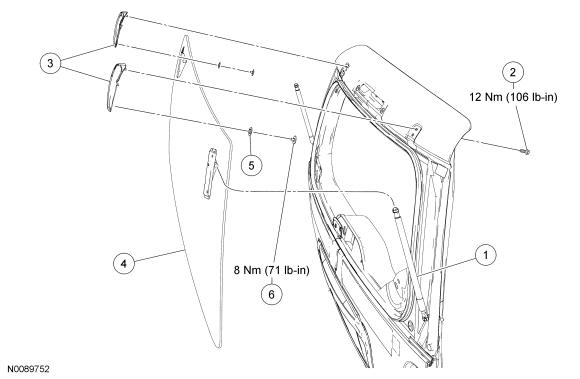

| Item | Part Number | Description |
|---|---|---|
| 1 | 42105/42104/42104 | Liftgate glass assist cylinder (LH/RH) (2 required) |
| 2 | W712536 | Liftgate glass hinge-to-body fastener (2 required) |
| 3 | 420A69/420A68/420A68 | Liftgate glass hinge assembly (LH/RH) (2 required) |
| 4 | 422A12 | Liftgate glass assembly |
| 5 | 40610 | Nylon spacer |
| 6 | - | Liftgate glass-to-hinge bolt |
