Turn Signal - Bulb: Removal

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    Remove the headlamp assembly. Refer to Headlamp Assembly - Expedition .

  1. 2.

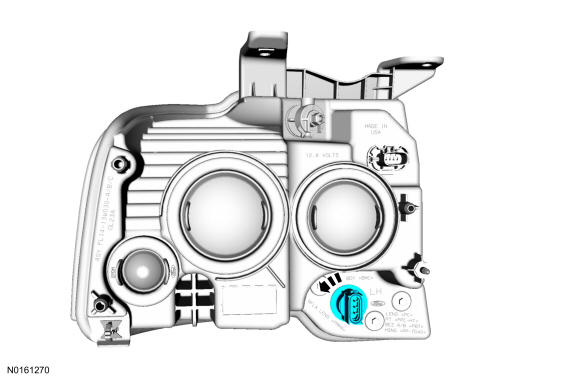

    Turn the turn lamp bulb holder counter clock-wise and remove the bulb holder.
GFD137058Courtesy of FORD MOTOR COMPANY

  1. 3.

    Remove the bulb.
GFD137059Courtesy of FORD MOTOR COMPANY
