Side Turn Signal Lamp: Removal

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If equipped with power folding mirrors, they must be synchronized any time the mirrors have been folded or unfolded without using the mirror control switch. Refer to Rear View Mirrors .

1.

Remove the exterior mirror glass. Refer to Rear View Mirrors .

2.

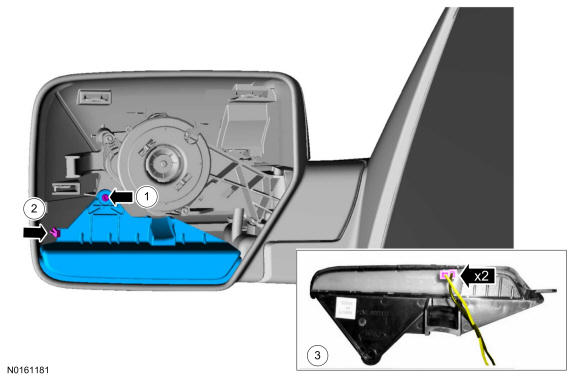

Remove the mirror mounted turn signal.
1. 1.

  Remove the screw.
1. 2.

  Release the tab and position the mirror mounted turn signal aside.
1. 3.

  Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY
