Rear Lamp Assembly: Removal
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
Navigator
- 1.
Position the rear lamp assembly aside.
- 1.

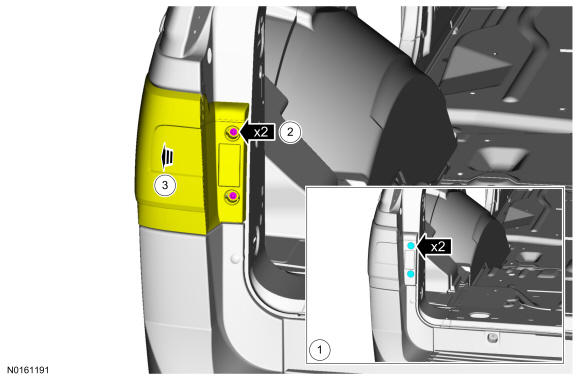

Remove the screw covers.
- 2.
Remove the rear lamp assembly screws.
- 3.
Position the rear lamp assembly aside.
 Courtesy of FORD MOTOR COMPANY
|
- 2.

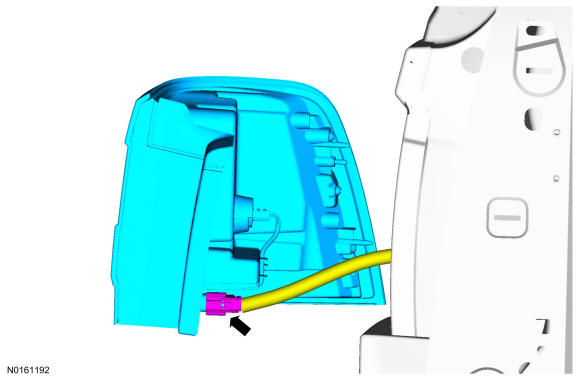

Disconnect the electrical connector and remove the rear lamp assembly.
 Courtesy of FORD MOTOR COMPANY
|
Expedition
- 3.
Position the rear lamp assembly aside.
- 1.

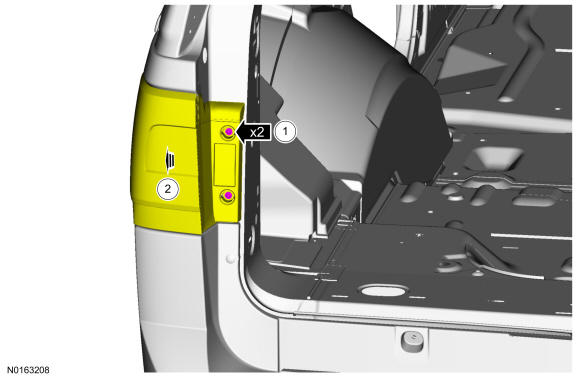

Remove the rear lamp assembly screws.
- 2.
Position the rear lamp assembly aside.
 Courtesy of FORD MOTOR COMPANY
|
- 4.

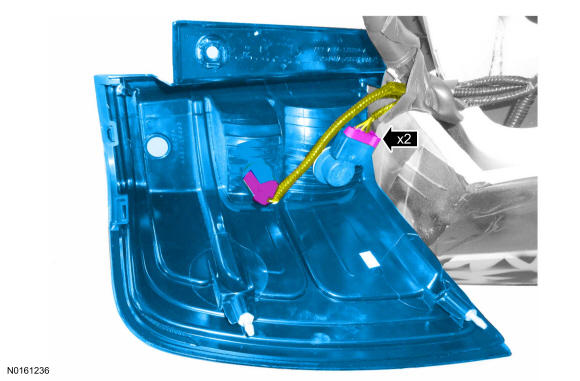

Disconnect the electrical connectors.
 Courtesy of FORD MOTOR COMPANY
|
