Puddle Lamp: Removal

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If equipped with power folding mirrors, they must be synchronized any time the mirrors have been folded or unfolded without using the mirror control switch. Refer to Rear View Mirrors .

Expedition

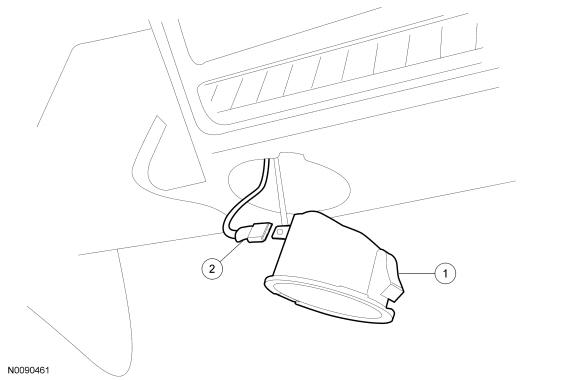

1.

Release the tab to remove the puddle lamp from the mirror housing.

Courtesy of FORD MOTOR COMPANY

2.

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

Navigator

3.

Remove the exterior mirror turn signal. Refer to Side Turn Signal Lamp .

4.

Remove the puddle lamp.

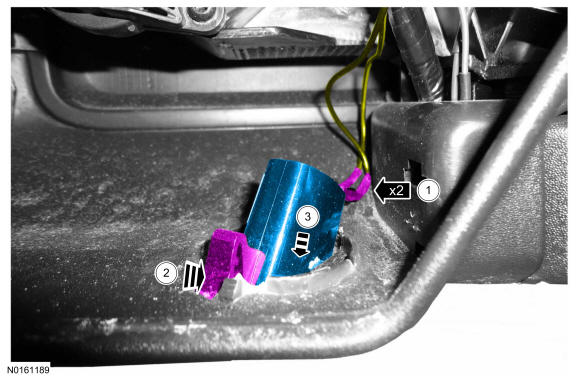

1. 1.

  Disconnect the puddle lamp electrical connectors.
1. 2.

  Release the tab.
1. 3.

  Remove the puddle lamp.

Courtesy of FORD MOTOR COMPANY
