Parking Lamp: Removal

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the liftgate trim panel. For additional information, refer to Interior Trim and Ornamentation .
- Position the water shield aside.

2.

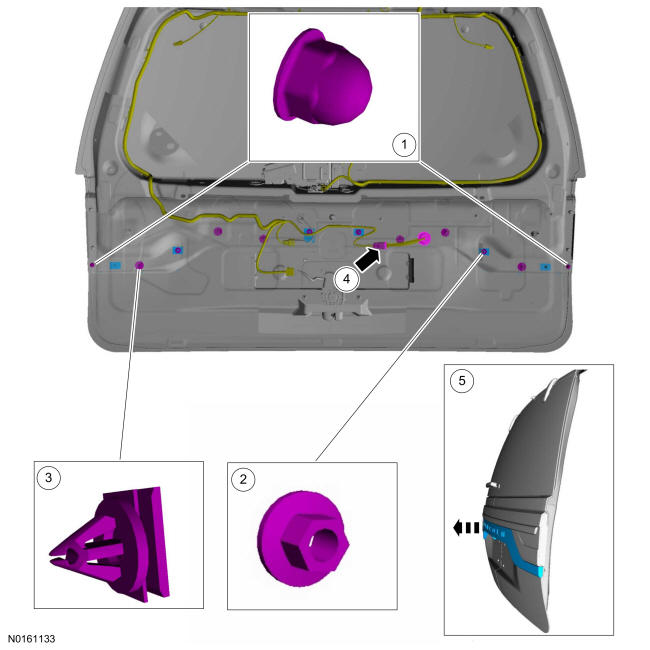

Remove the license lamp housing.
1. 1.

  Remove the 2 acorn nuts.
1. 2.

  Remove the 4 bolts.
1. 3.

  Squeeze the tabs and release the 6 fasteners.
1. 4.

  Disconnect the electrical connector and push the wire grommet through the liftgate exterior panel.
1. 5.

  Remove the license lamp housing.

Courtesy of FORD MOTOR COMPANY

3.

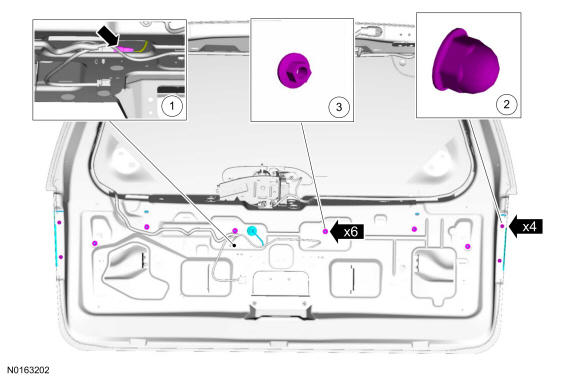

Remove the center rear lamp assembly fasteners.
1. 1.

  Disconnect the center rear lamp assembly electrical connector.
1. 2.

  Remove the acorn nuts.
1. 3.

  Remove the nuts.

Courtesy of FORD MOTOR COMPANY

4.

Remove the center rear lamp assembly.

Courtesy of FORD MOTOR COMPANY
