High Mounted Stoplamp: Removal

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

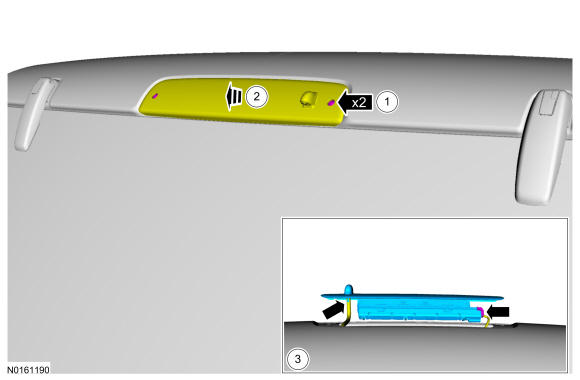

Center high mounted stoplamp

1.

Remove the center high mounted stoplamp.
1. 1.

  Remove the screws.
1. 2.

  Position the center high mounted stoplamp aside.
1. 3.

  Disconnect the electrical connector and the washer hose.

Courtesy of FORD MOTOR COMPANY

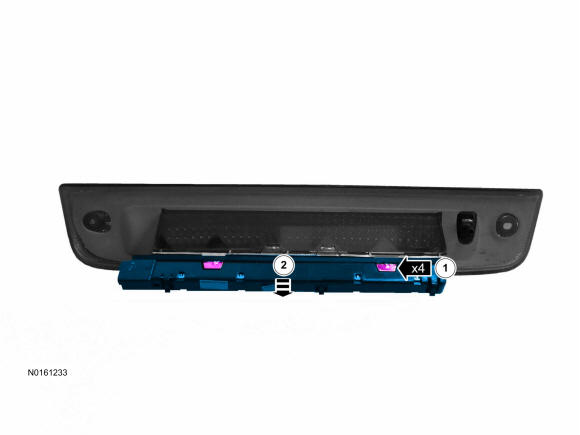

Center high mounted stoplamp bulb

2.

Remove the center high mounted stoplamp bulb holder.
1. 1.

  Release the tabs.
1. 2.

  Remove the center high mounted stoplamp bulb holder.

Courtesy of FORD MOTOR COMPANY

3.

Remove and replace the bulbs as necessary.

Courtesy of FORD MOTOR COMPANY
