Headlamp Bulb - Navigator: Removal

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the headlamp assembly. Refer to Headlamp Assembly - Navigator .

2.

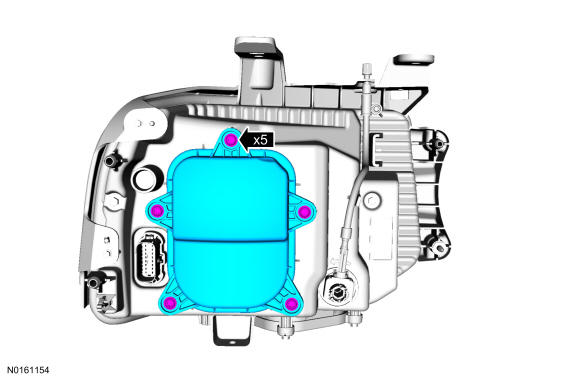

Remove the screws and the headlamp bulb cover.

Courtesy of FORD MOTOR COMPANY

3.

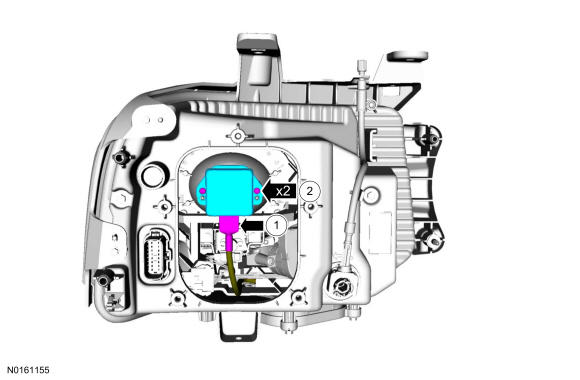

Remove the headlamp bulb and bracket assembly.
1. 1.

  Disconnect the headlamp bulb electrical connector.
1. 2.

  Remove the screws.

Courtesy of FORD MOTOR COMPANY

4.

Separate the headlamp bulb from the bracket.

Courtesy of FORD MOTOR COMPANY
