Headlamp Assembly - Navigator: Removal

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the front bumper cover. Refer to Bumpers .

2.

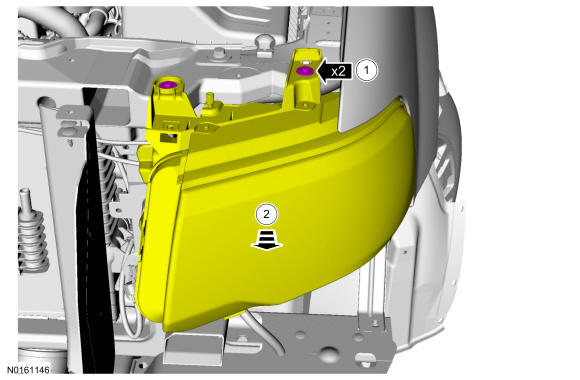

Position the headlamp assembly forward.
1. 1.

  Remove the bolts.
  - To install, tighten to 3.2 Nm (28 lb-in).
1. 2.

  Position the headlamp assembly forward.

Courtesy of FORD MOTOR COMPANY

3.

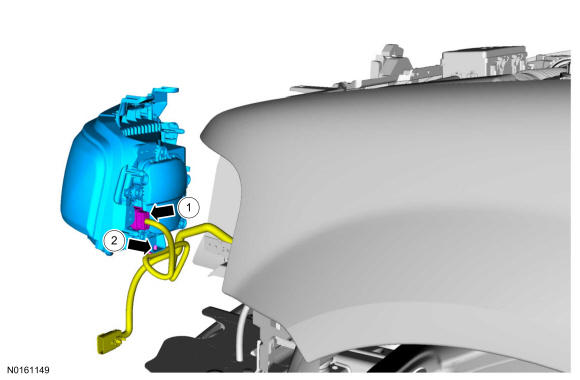

Remove the headlamp assembly.
1. 1.

  Disconnect the headlamp assembly electrical connector.
1. 2.

  Separate the wiring harness retainer.

Courtesy of FORD MOTOR COMPANY
