Headlamp Assembly - Expedition: Removal

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

Position the headlamp assembly forward.

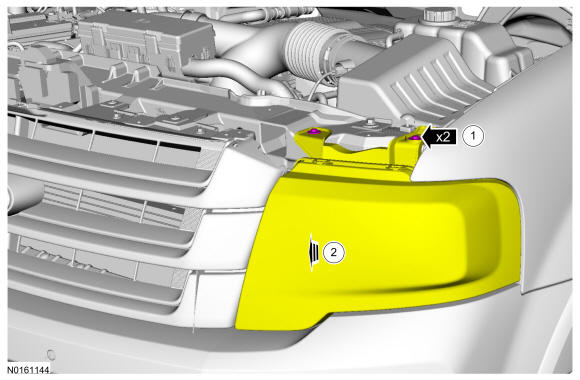

1. 1.

  Remove the bolts.
  - To install, tighten to 3.2 Nm (28 lb-in).
1. 2.

  Position the headlamp assembly forward.

Courtesy of FORD MOTOR COMPANY

2.

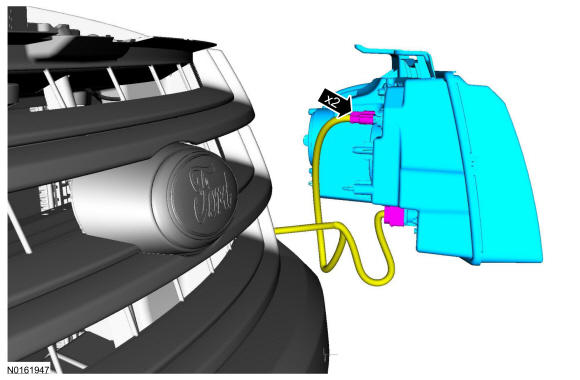

Disconnect the headlamp assembly electrical connectors and remove the headlamp assembly.

Courtesy of FORD MOTOR COMPANY
