Fog Lamp: Removal

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side is shown, RH is similar.

1.

Disconnect the foglamp electrical connector.

Courtesy of FORD MOTOR COMPANY

2.

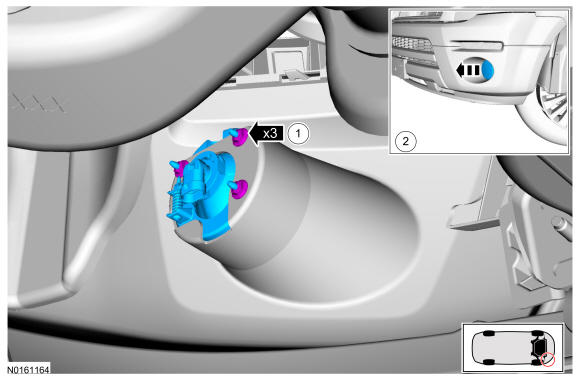

Remove the foglamp.
1. 1.

  Remove the nuts.
1. 2.

  Remove the foglamp assembly from the front of the bumper cover.

Courtesy of FORD MOTOR COMPANY
