Fog Lamp - Rear: Removal
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Remove the rear bumper cover. Refer to
Bumpers
.
- 2.

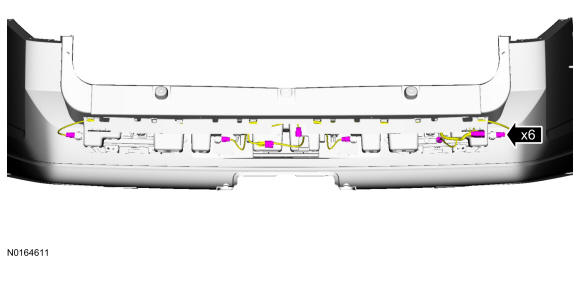

Disconnect the rear bumper cover harness electrical connectors.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

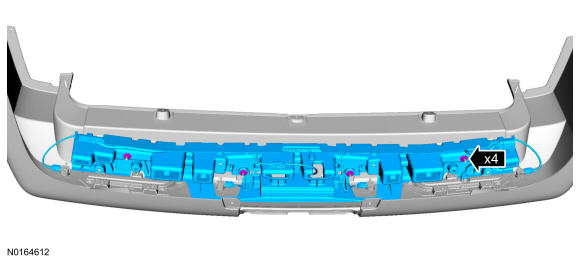

Remove the nuts and the rear bumper cover reinforcement.
 Courtesy of FORD MOTOR COMPANY
|
- 4.

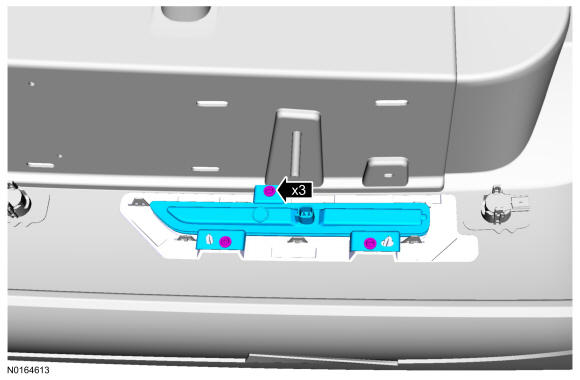

Remove the screws and the rear fog lamp.
 Courtesy of FORD MOTOR COMPANY
|
