Daytime Running Lamps (DRL): Removal

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH side is shown, RH is similar.

  1. 1.

    Remove the front bumper cover. Refer to Bumpers .

  1. 2.

    Remove the DRL.

    1. 1.

      Disconnect the DRL electrical connector.

    1. 2.

      Remove the screws.

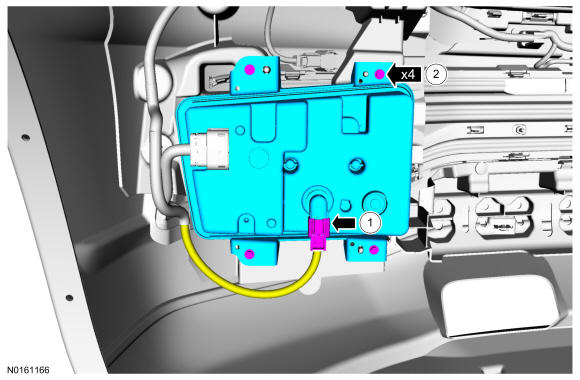

GFD137013Courtesy of FORD MOTOR COMPANY
