Removal And Installation: Ballast: Removal
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Remove the headlamp assembly. HEADLAMP ASSEMBLY - Navigator
- 2.
Remove the screws and the lower headlamp bracket.
 Courtesy of FORD MOTOR COMPANY
|
- 3.
Position the ballast aside.

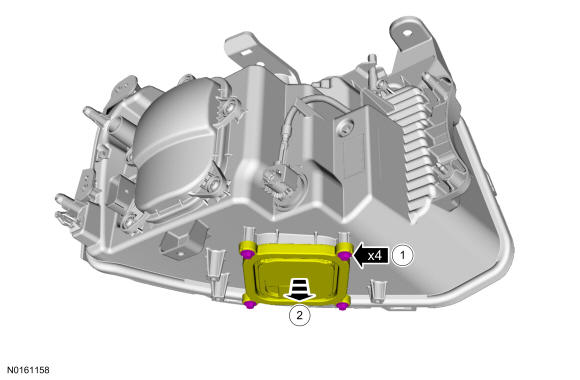

- 1.
Remove the screws.
- 2.
Position the ballast aside.
 Courtesy of FORD MOTOR COMPANY
|
- 4.

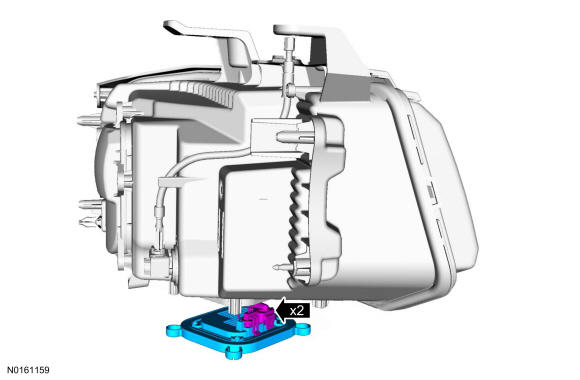

Disconnect the electrical connectors and remove the ballast.
 Courtesy of FORD MOTOR COMPANY
|
