System Operation - Daytime Running Lamps (DRL), Navigator
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

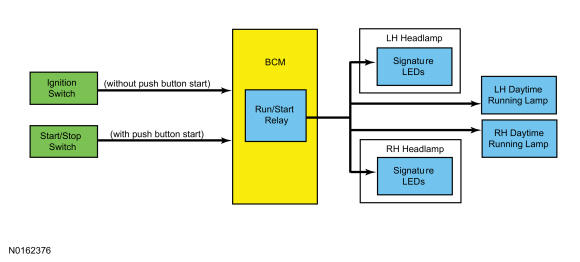

System Diagram
Daytime Running Lamps (DRL)
NOTE:
The DRL operate at reduced intensity when the parking lamps are on.
The DRL system utilizes the signature LEDs in the headlamp assembly and the daytime running lamp assembly located in the lower front fascia.
The DRL are activated when the ignition is in RUN.
