Ignition Switch
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Remove the steering column shrouds. Refer to
Steering Column
.
- 2.

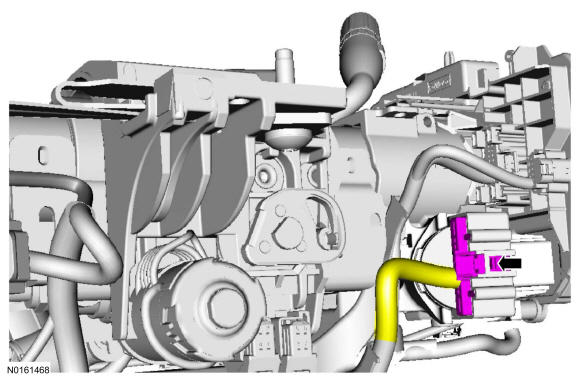

Disconnect the ignition switch electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
- 3.
Remove the ignition switch.

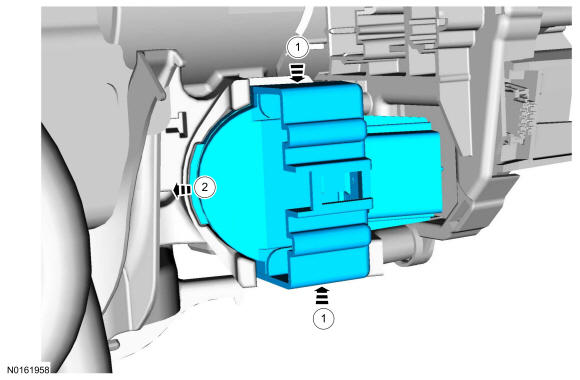

- 1.
Push in the ignition switch tabs.
- 2.
Remove the ignition switch.
 Courtesy of FORD MOTOR COMPANY
|
- 4.
To install, reverse the removal procedure.
