Steering Column Motor: Removal
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

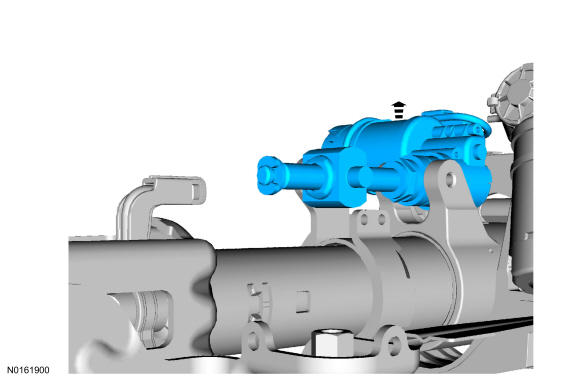

Steering column telescopic motor shown, steering column tilt motor similar.
- 1.
Remove the steering column. Refer to Steering Column .
- 2.

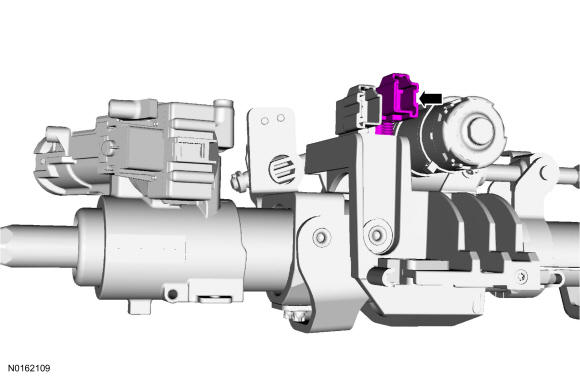

With the steering column upside down on a workbench, detach the telescopic motor electrical connector pin-type retainer from the steering column.
- 4.

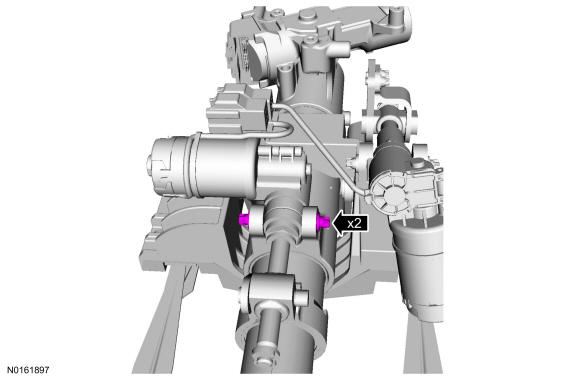

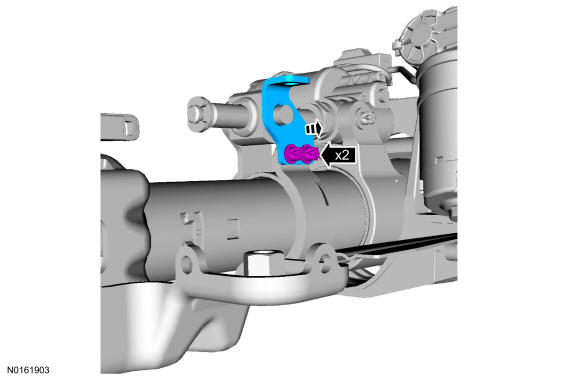

Remove the telescopic motor screws and the trunnion nut capture bracket.- To install, tighten the bolt to 7 Nm (62 lb-in).
