Steering Column Motor: Installation
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
- 2.

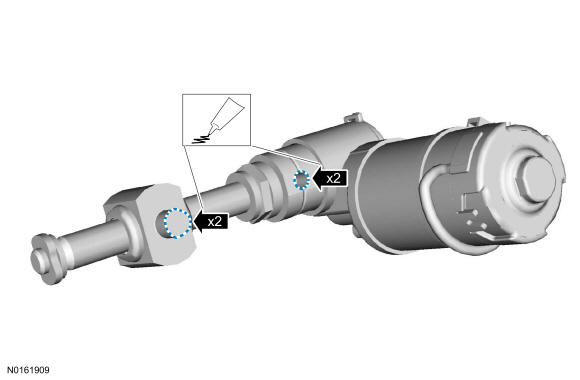

Apply grease (supplied with the new motor) to the trunnion nut axles and the telescopic motor lead screw housing holes.

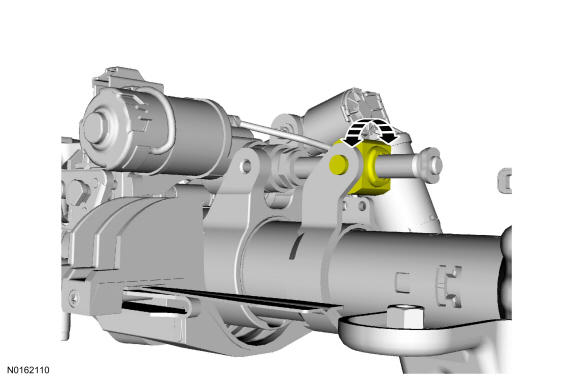

- 3.NOTE: If necessary, make small alignment adjustments by pivoting the tilt bracket.
Rotate the trunnion nut until the correct length is achieved to align the leadscrew housing with the threaded holes in the support arm.
