Welding Symbols
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

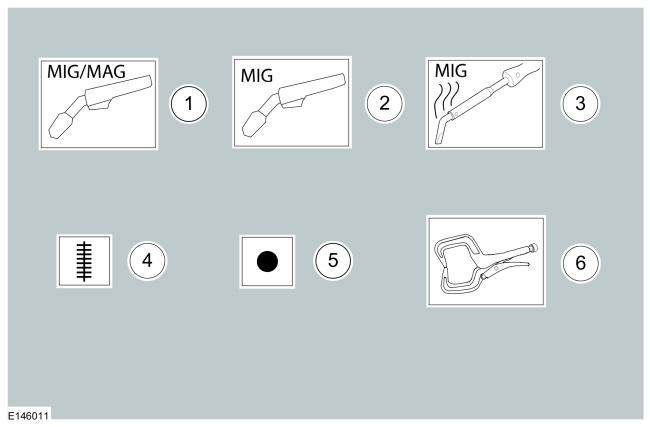

These symbols indicate the type of welding to be used.
| Item | Description |
|---|---|
| 1 | Metal inert gas (MIG) / Metal active gas (MAG) welding equipment |
| 2 | Metal inert gas (MIG) welding equipment |
| 3 | Metal inert gas (MIG) brazing equipment |
| 4 | Apply a continuous weld to the specified component |
| 5 | Apply spot welds to the specified component |
| 6 | C-clamp |
