Turn Symbols
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

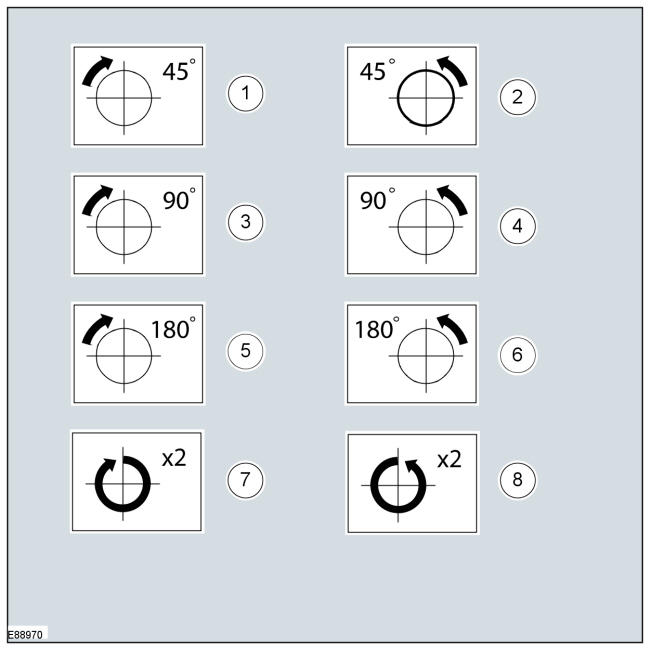

Turn symbols are used to provide further information on the direction or angle of component turns.
| Item | Description |
|---|---|
| 1 | Turn the component clockwise through 45° |
| 2 | Turn the component counterclockwise through 45 ° |
| 3 | Turn the component clockwise through 90 ° |
| 4 | Turn the component counterclockwise through 90 ° |
| 5 | Turn the component clockwise through 180 ° |
| 6 | Turn the component counterclockwise through 180 ° |
| 7 | Turn the component clockwise through 2 complete turns |
| 8 | Turn the component counterclockwise through 2 complete turns |
