Pliers Symbols
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

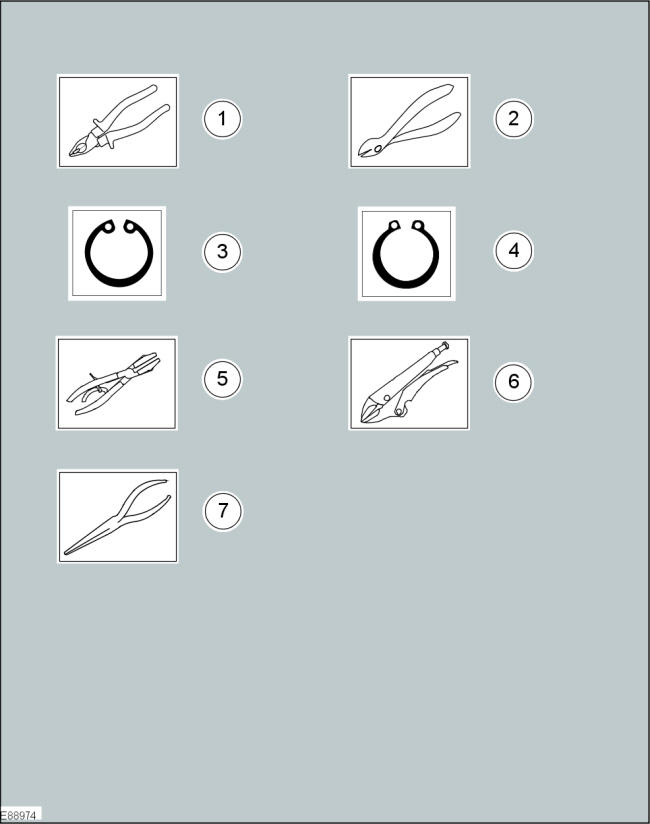

The plier symbols are used to show which pliers is recommended to carry out a procedure step.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Combination pliers |
| 2 |
Side cutter pliers |
| 3 |
Securing ring - inner |
| 4 |
Securing ring - outer |
| 5 |
Hose clamp pliers |
| 6 |
Locking pliers |
| 7 |
Long nose pliers |
