Movement Symbols
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

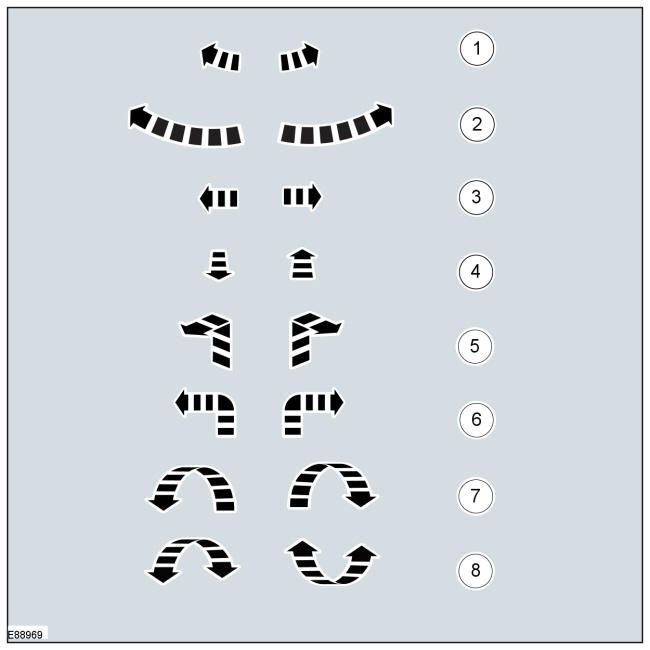

Movement symbols provide detailed information to a required component movement. These component movements can be rotational or 1-3 dimensional movements.
| Item | Description |
|---|---|
| 1 | Minor component movement clockwise/counterclockwise |
| 2 | Major component movement clockwise/counterclockwise |
| 3 | Component movement to the left/right/up/down |
| 4 | Component movement towards/away |
| 5 | 3 dimensional component movement |
| 6 | 2 dimensional component movement |
| 7 | 3 dimensional component rotation |
| 8 | 3 dimensional component cycling |
