Miscellaneous Symbols
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

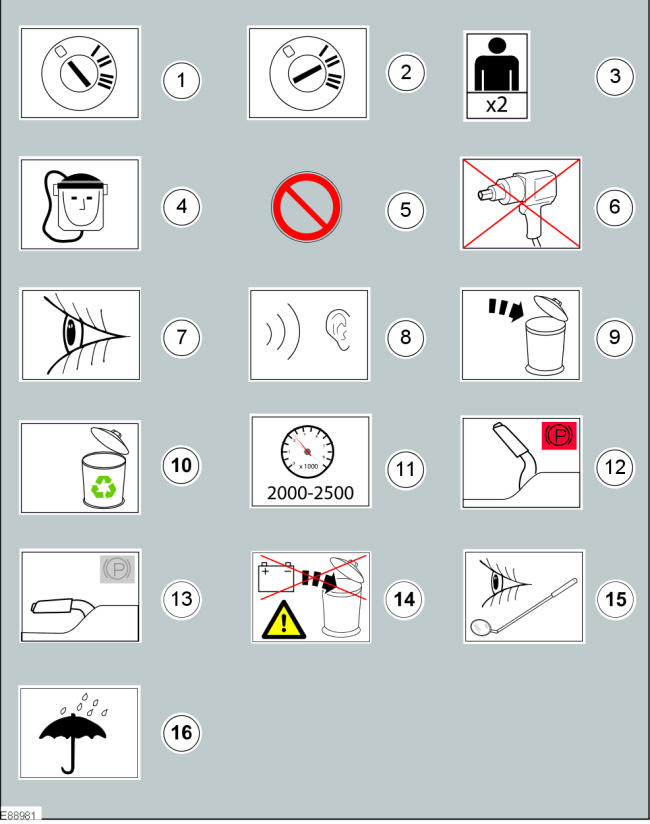

These symbols provide further information that is required to carry out a procedure step.
| Item | Description |
|---|---|
| 1 | Set the ignition switch to the 0 position |
| 2 | Set the ignition switch to the II position |
| 3 | The procedure step requires the aid of the specified number of supporting technicians |
| 4 | Self contained breathing apparatus |
| 5 | General prohibition used in combination with another symbol |
| 6 | Do not use power tools |
| 7 | Visual check |
| 8 | Noise check |
| 9 | Dispose the specified component |
| 10 | Replaced by item 9 (Dispose the specified component) |
| 11 | Set the engine speed to the specified value |
| 12 | Fully apply the parking brake lever |
