General equipment symbols
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

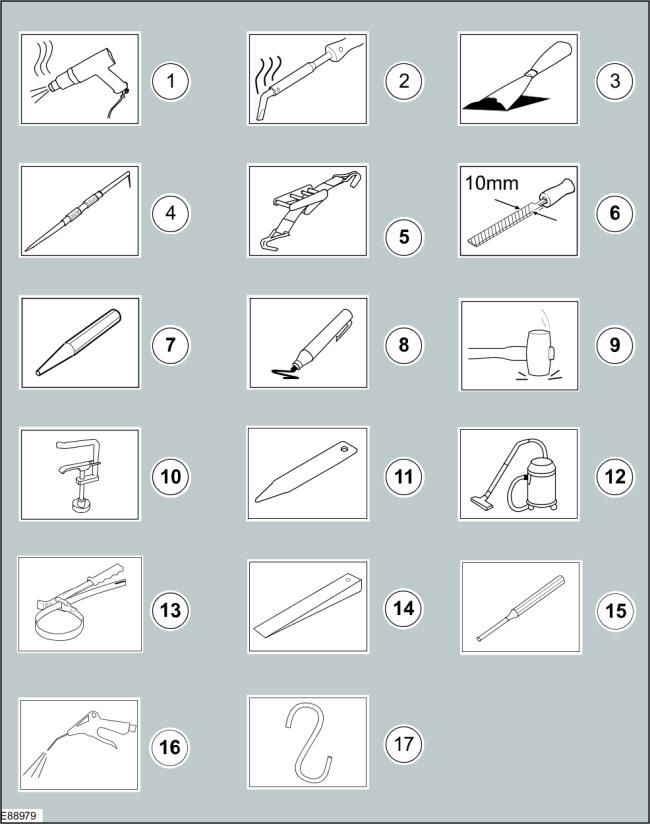

The general equipment symbols are used to show where to use which type of general equipment to carry out a procedure step.
| Item | Description |
|---|---|
| 1 | Hot air gun |
| 2 | Soldering iron |
| 3 | Scraper |
| 4 | Scriber |
| 5 | Securing strap |
| 6 | File with specified size |
| 7 | Center punch |
| 8 | Marker |
| 9 | Mallet |
| 10 | Hose clamp |
| 11 | Interior trim remover |
| 12 | Vacuum cleaner |
| 13 | Strap wrench |
| 14 | Wedge |
| 15 | Pin punch |
| 16 | Air blow gun |
| 17 | Relocate and support the component |
| 18 | C-clamp |
