Drilling and grinding symbols
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

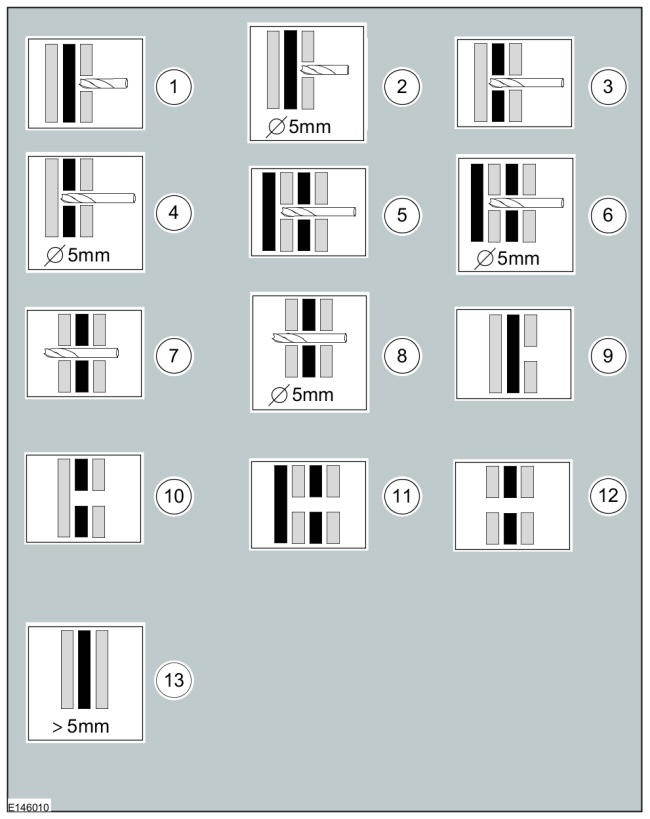

These symbols indicate the type of drilling or grinding to be used.
| Item | Description |
|---|---|
| 1 | Drill through first body layer with a suitable diameter |
| 2 | Drill through first body layer with the specified diameter |
| 3 | Drill through the indicated number of body layers with a suitable diameter |
| 4 | Drill through the indicated number of body layers with the specified diameter |
| 5 | Drill through the indicated number of body layers with a suitable diameter |
| 6 | Drill through the indicated number of body layers with the specified diameter |
| 7 | Drill through all body layers with a suitable diameter |
| 8 | Drill through all body layers with the specified diameter |
| 9 | Grind one layer |
| 10 | Grind two layers |
| 11 | Grind to last layer |
| 12 | Grind all layers |
| 13 | Material thickness > Xmm |
