Drill Symbols
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

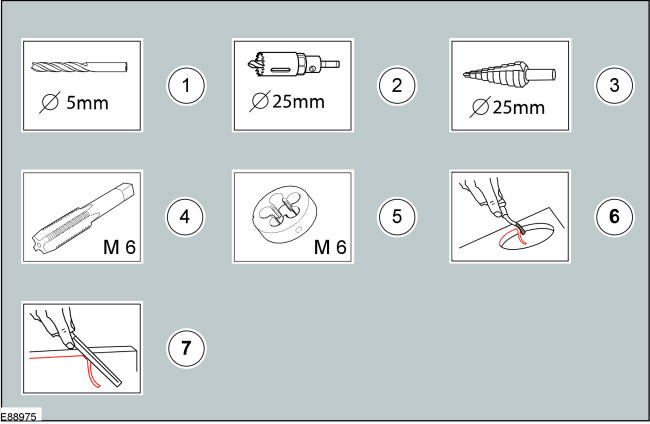

The drill symbols are used to show which type and size of drill bit is recommended to carry out a procedure step.
| Item | Description |
|---|---|
| 1 | Drill bit with a specified diameter |
| 2 | Hole saw with a specified diameter |
| 3 | Stepped drill bit with a specified diameter |
| 4 | Tap with a specified diameter |
| 5 | Die with a specified diameter |
| 6 | Scraper for circular holes |
| 7 | Scraper for straight edges |
