Cutting Tool Symbols
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

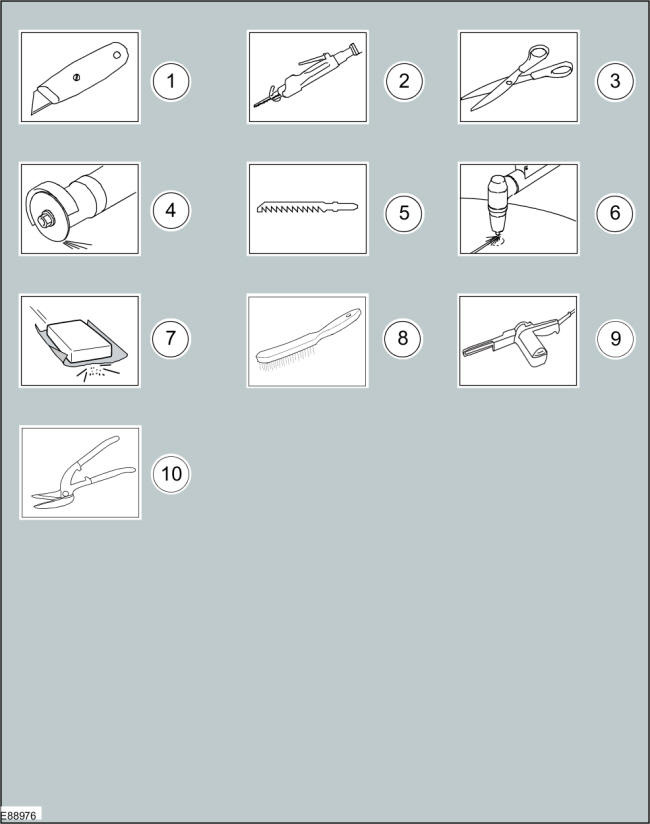

The cutting tool symbols are used to show which type of cutting tool is recommended to carry out a procedure step.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Cutting knife |
| 2 |
Air body saw |
| 3 |
Scissors |
| 4 |
Grinder |
| 5 |
Jig saw |
| 6 |
Plasma cutter |
| 7 |
Sanding Paper |
| 8 |
Wire brush |
