Control Diagram symbols - Description and Operation procedures
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

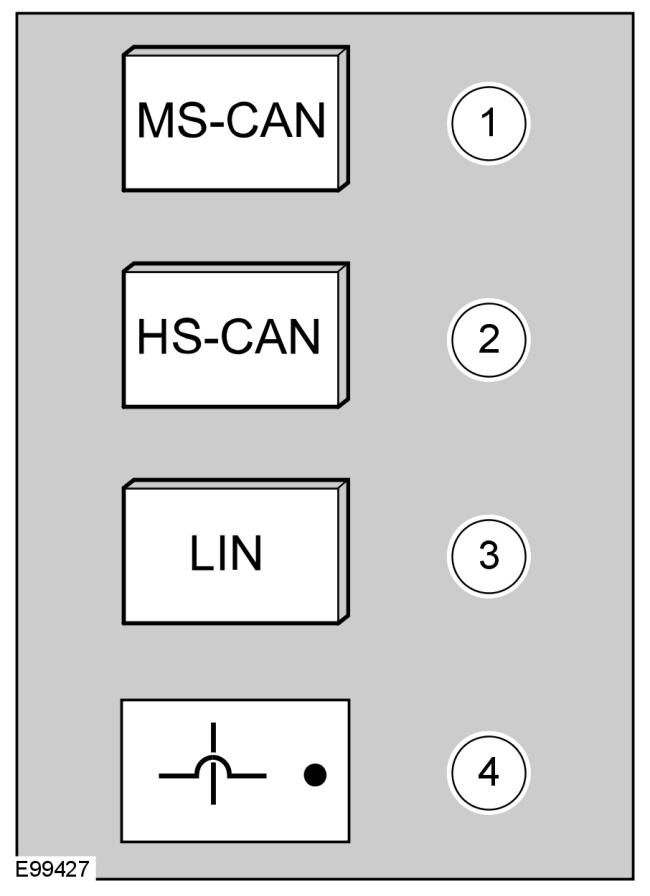

These symbols provide further information on the type of connectivity, direction of flow or type of data bus of a system.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Medium Speed Controller Area Network |
| 2 |
High Speed Controller Area Network |
| 3 |
Local Interconnect Network |
| 4 |
Wires cross but are not connected |
