Rear Wheel Knuckle: Notes
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
Special Tool(s)
| Separator, Ball Joint 204-592 |

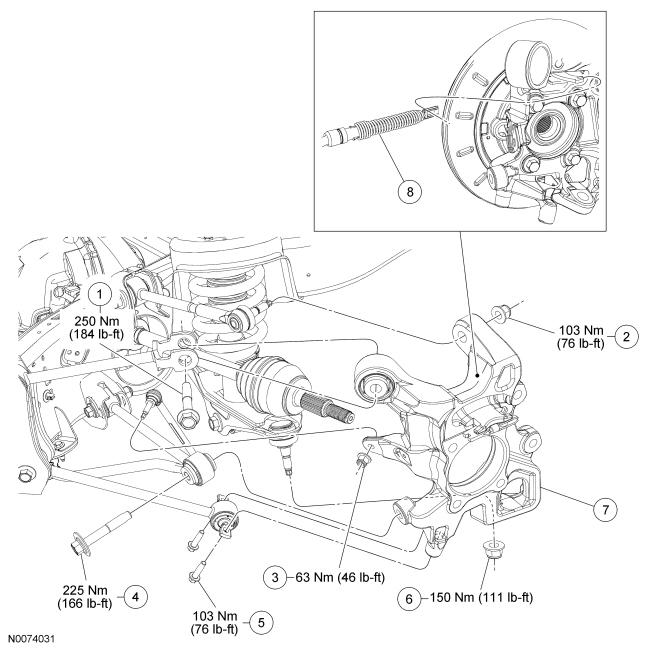

| Item | Part Number | Description |
|---|---|---|
| 1 | W711865 | Upper trailing arm-to-wheel knuckle bolt |
| 2 | W520215 | Upper arm-to-wheel knuckle nut |
| 3 | W520213 | Stabilizer bar link nut |
| 4 | W711237 | Toe link-to-wheel knuckle bolt |
| 5 | W71170 | Lower trailing arm-to-wheel knuckle bolt |
| 6 | W520216 | Lower ball joint nut |
| 7 | 5A970 LH/ 5A971 RH LH/ 5A971 RH | Wheel knuckle |
| 8 | 2A635 RH/ 2A809 LH RH/ 2A809 LH | Parking brake cable |
