Rear Wheel Knuckle Bushing: Notes
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
Special Tool(s)
| Bushing Remover 204-034 | |
| Bushing Remover 204-589/1 | |
| Bushing Remover/Installer 204-608 | |
| Forcing Screw, Bearings and Washers 205-813 |

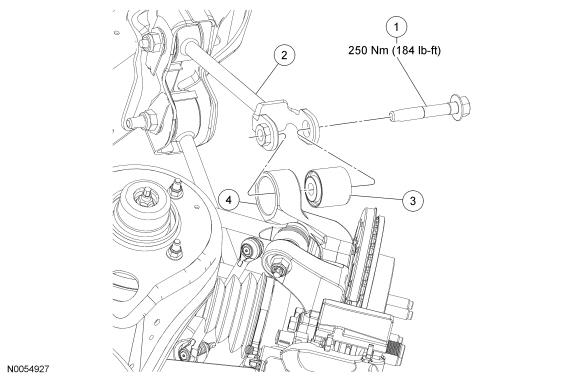

| Item | Part Number | Description |
|---|---|---|
| 1 | W711865 | Upper trailing arm-to-wheel knuckle bolt |
| 2 | 5B672 | Upper trailing arm |
| 3 | - | Wheel knuckle bushing |
| 4 | 5A970 LH/ 5A971 RH LH/ 5A971 RH | Wheel knuckle |
