Rear Wheel Bearing and Wheel Hub: Notes
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

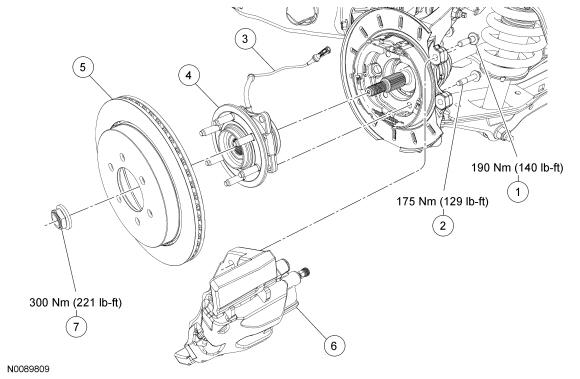

Courtesy of FORD MOTOR COMPANY
| Item |
Part Number |
Description |
| 1 |
W707292 |
Brake caliper anchor plate bolt (2 required) |
| 2 |
W707353 |
Wheel bearing and wheel hub bolt (4 required) |
| 3 |
2C204 |
Rear wheel speed sensor bolt |
| 4 |
2B664 |
Wheel bearing and wheel hub |
| 5 |
1126 |
Brake disc |
| 6 |
- |
Brake caliper and anchor plate assembly |
| 7 |
W710084 |
Halfshaft nut |

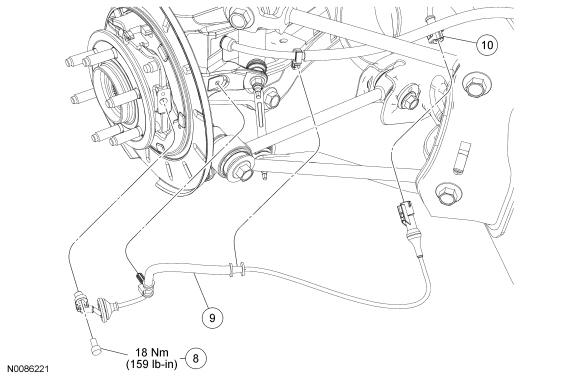

Courtesy of FORD MOTOR COMPANY
| Item |
Part Number |
Description |
| 8 |
- |
Rear wheel speed sensor bolt (part of 2C190) |
| 9 |
2C190 |
Rear wheel speed sensor |
| 10 |
- |
Body harness electrical connector (part of 14A464) |
