Rear Upper Arm: Notes
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
Special Tool(s)
 Courtesy of FORD MOTOR COMPANY
|
Separator, Ball Joint 204-592 |

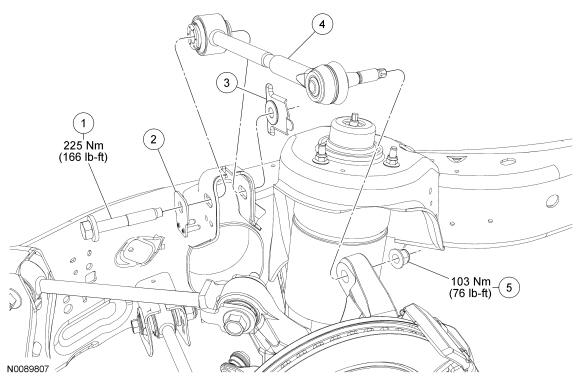

Courtesy of FORD MOTOR COMPANY
| Item |
Part Number |
Description |
| 1 |
W712774 |
Upper arm-to-frame bolt |
| 2 |
5A983 |
Camber set shim |
| 3 |
W711495 |
Flagnut |
| 4 |
5A814 |
Upper arm |
| 5 |
W520215 |
Upper arm-to-wheel knuckle nut |
