Front Shock Absorber and Spring Assembly: Installation

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

Position the shock absorber assembly.

Courtesy of FORD MOTOR COMPANY

2.

NOTE: Align the index marks made during disassembly.

Compress the spring until the tension is released from the shock absorber. General Equipment: Spring Compressor.

Courtesy of FORD MOTOR COMPANY

3.

NOTE: Use the hex-holding feature to prevent the shock rod from turning while installing the nut.

While holding the shock rod, install the new shock absorber and the shock rod nut.
- Tighten to 55 Nm (41 lb-ft).

Courtesy of FORD MOTOR COMPANY

4.

NOTE: If equipped with dynamic suspension, the RH and LH Continuous Controlled Damping (CCD) shock absorber assemblies are unique and cannot be used on opposite sides of the vehicle.
- 1.

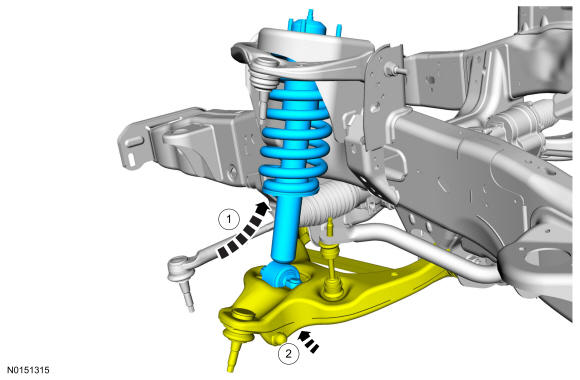

  Install the shock absorber and spring assembly.
- 2.

  Position the lower arm assembly up.

Courtesy of FORD MOTOR COMPANY

5.

Install the 3 new shock absorber and spring assembly upper nuts.
- Tighten to 63 Nm (46 lb-ft).

Courtesy of FORD MOTOR COMPANY

6.

Install the 2 new lower shock absorber nuts.
- Tighten to 90 Nm (66 lb-ft).

Courtesy of FORD MOTOR COMPANY

7.

NOTE: Use the hex-holding feature to prevent the stud from turning while removing the nut.

Install the new stabilizer bar link upper nut.
- Tighten to 70 Nm (52 lb-ft).

Courtesy of FORD MOTOR COMPANY

8.

Position the wheel knuckle and install the new lower ball joint nut.
- Tighten to 175 Nm (129 lb-ft).

Courtesy of FORD MOTOR COMPANY

9.

Install the new upper ball joint nut.
- Tighten to 115 Nm (85 lb-ft).

Courtesy of FORD MOTOR COMPANY

10.

Install the 3 IWE bolts.
- Tighten to 12 Nm (106 lb-in).

Courtesy of FORD MOTOR COMPANY

11.

NOTE: If equipped with dynamic suspension.

NOTE: RH attachment locations shown LH attachment locations similar. Actual attachment locations may vary.

Connect the shock absorber and spring assembly wiring harness clips.

Courtesy of FORD MOTOR COMPANY

12.

NOTE: If equipped with dynamic suspension.

NOTE: RH connector shown LH connector similar. Actual connector locations may vary.

Connect the shock absorber and spring assembly electrical connector.

Courtesy of FORD MOTOR COMPANY

13.

NOTE: If equipped with dynamic suspension.

Position the height sensor arm bracket and install the height sensor arm bracket screw.
- Tighten to 20 Nm (177 lb-in).

Courtesy of FORD MOTOR COMPANY

14.

Position the brake hose and IWE vacuum hose bracket and install the bolt.
- Tighten to 12 Nm (106 lb-in).

Courtesy of FORD MOTOR COMPANY

15.

Attach the tie rod end to the wheel knuckle and install the new tie rod end nut.
- Tighten to 115 Nm (85 lb-ft).

Courtesy of FORD MOTOR COMPANY

16.

NOTE: While placing wheel bearing and wheel hub into the wheel knuckle, hold the Constant Velocity (CV) outboard joint with outboard pressure to maintain spline engagement with the IWE actuator gear.

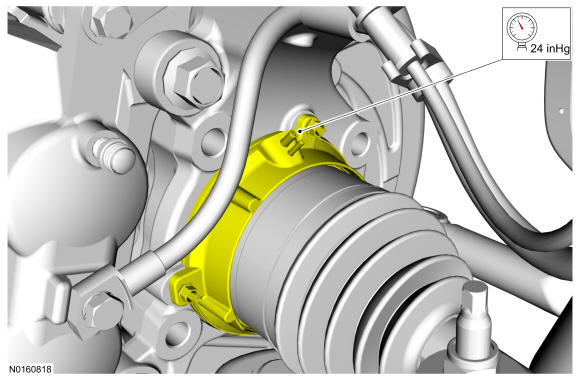

Using a hand vacuum pump apply and hold 24 inHg of vacuum to the IWE actuator through the large port on IWE to retract the actuator.

Courtesy of FORD MOTOR COMPANY

17.

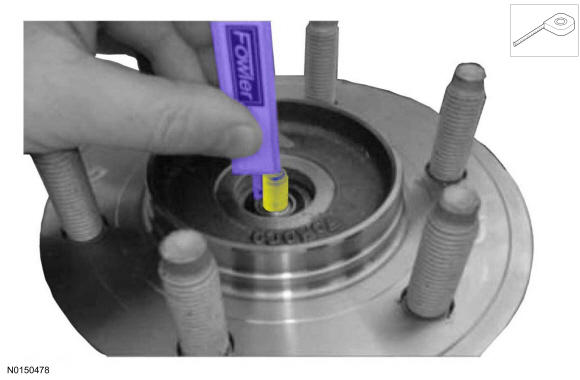

NOTE: Measure the depth of the CV shaft threaded end to the inner bearing race (shown in illustration). The minimum depth is 15.5 mm (0.61 in). If the depth is less than 15.5 mm (0.61 in) rotate the CV shaft to clear a binding condition between the IWE and CV splines. Installing the axle nut and tightening without the proper depth of protrusion will result in damage to the IWE.

Measure the CV shaft threaded end to the inner bearing race.

Courtesy of FORD MOTOR COMPANY

18.

NOTE: Verify the spline engagement by checking for spline lash before installing the axle nut or component damage may occur.

NOTE: With vacuum still applied to IWE.

Install the new the axle nut.
- Tighten to 40 Nm (30 lb-ft).
- 2.

  Verify free rotation of the hub with no CV joint rotation. No clicking or grinding noise should be present.
- 3.

  Release vacuum and rotate bearing slightly to engage actuator (may hear single click when IWE system engages). Verify hub and CV joint rotate together.

Courtesy of FORD MOTOR COMPANY

19.

NOTE: If the dust cap to bearing interface is damaged, damaged parts must be replaced.

Install the dust cap.

Courtesy of FORD MOTOR COMPANY

20.

Position the wheel speed sensor wiring and install the bolt.
- Tighten to 12 Nm (106 lb-in).

Courtesy of FORD MOTOR COMPANY

21.

Install the brake disc. Refer to Front Disc Brake .

22.

NOTE: The wheel speed sensor electrical connector is located in the engine compartment secured to the fender apron.

Connect the wheel speed sensor electrical connector.
