Rear Drive Axle: Notes
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
Special Tool(s)
| 2 Jaw Puller 205-D072 (D97L-4221-A) or equivalent | |
| Adapter for 205-S127 205-111 (T76P-4020-A11) | |
| Adapter for 205-S156 205-159 (T80T-4020-F42) | |
| Adapter for 205-S156 205-160 (T80T-4020-F43) | |
| Depth Gauge/Aligner, Drive Pinion 205-937 | |
| Depth Gauge/Aligner, Drive Pinion 205-383 (T97T-4020-B) | |
| Dial Indicator Gauge With Holding Fixture 100-002 (TOOL-4201-C) | |
| Gauge, Clutch Housing 308-021 (T75L-4201-A) | |
| Gauge, Differential (Traction Lock) 205-384 (T97T-4205-A) | |
| Gauge, Differential (Traction Lock) 205-386 (T97T-4205-D) | |
| Gauge Tube, Drive Pinion 205-377 (T97T-4020-A) | |
| Holding Fixture, Drive Pinion Flange 205-126 (T78P-4851-A) | |
| Holding Fixture, Transmission 307-003 (T57L-500-B) | |
| Installer, Differential Carrier Bearing 205-D044 (D81T-4221-A) | |
| Installer, Drive Pinion Bearing 205-488 | |
| Installer, Drive Pinion Bearing Cup 205-024 (T67P-4616-A) | |
| Installer, Drive Pinion Flange 205-233 (T85T-4851-AH) | |
| Installer, Drive Pinion Oil Seal 205-208 (T83T-4676-A) | |
| Installer, Rear Axle Pinion Bearing Cup 205-852 | |
| Installer, Input shaft Bearing Cup 308-391 | |
| Plate, Bearing/Oil Seal 205-090 (T75L-1165-B) | |
| Protector, Drive Pinion Thread 205-229 (T85T-4209-AH) | |
| Puller, Bearing 205-D064 (D84L-1123-A) | |
| Rotator, Differential 205-378 (T97T-4205-C) | |
| Step Plate 205-D061 (D83T-4205-C2) or equivalent |
Material
| Item | Specification |
| Motorcraft ® Additive Friction Modifier XL-3 (US); CXL-3 (Canada) | EST-M2C118-A |
| Motorcraft ® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL | WSS-M2C942-A |
| Motorcraft ® Premium Long-Life Grease XG-1-E1 | ESA-M1C75-B |

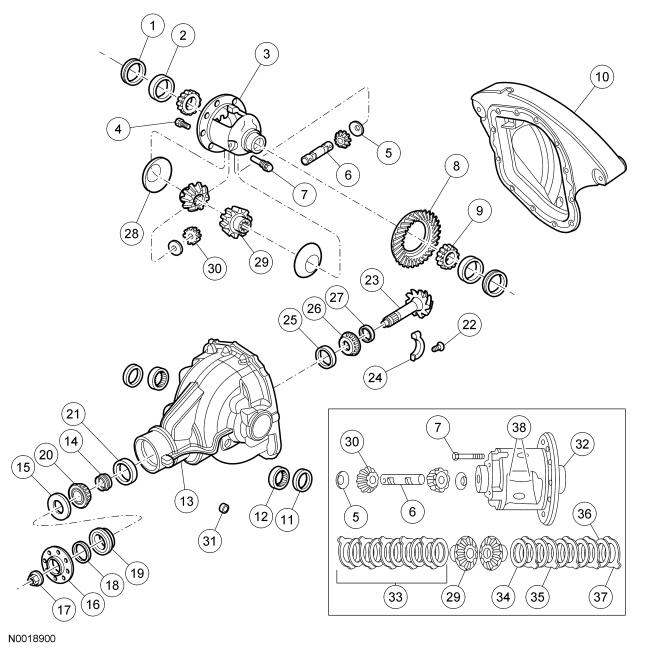

| Item | Part Number | Description |
|---|---|---|
| 1 | 4067 | Differential bearing shim |
| 2 | - | Differential bearing cup (part of 4220) |
| 3 | 4204 | Differential case |
| 4 | 4216 | Differential ring gear bolt |
| 5 | 4230 | Differential pinion gear thrust washer |
| 6 | 4211 | Differential pinion shaft |
| 7 | 4241 | Differential pinion shaft lock bolt |
| 8 | - | Differential ring gear (part of 4209) |
| 9 | 4220 | Differential bearing |
| 10 | 4033 | Differential housing cover |
| 11 | 4A109 | Inboard CV joint stub shaft pilot bearing housing seal |
| 12 | 4B413 | Inboard CV joint stub shaft pilot bearing |
| 13 | 4010 | Differential housing |
| 14 | 4662 | Differential drive pinion collapsible spacer |
| 15 | 4670 | Drive pinion shaft oil slinger |
| 16 | 4851 | Pinion flange |
| 17 | 4320 | Pinion nut |
| 18 | - | Drive pinion oil seal deflector (part of 4851) |
| 19 | 4676 | Drive pinion seal |
| 20 | 4621 | Drive pinion bearing |
| 21 | - | Differential drive pinion bearing cup (part of 4621) |
| 22 | - | Differential bearing cap bolt (part of 4010) |
| 23 | - | Drive pinion gear (part of 4209) |
| 24 | - | Differential bearing cap (part of 4010) |
| 25 | - | Drive pinion bearing cup (part of 4630) |
| 26 | 4630 | Drive pinion bearing |
| 27 | 4663 | Drive pinion bearing adjustment shim |
| 28 | 4228 | Differential side gear thrust washer |
| 29 | - | Differential side gear (part of 4215) |
| 30 | - | Differential pinion gear (part of 4215) |
| 31 | 7860108 | Fill plug |
| 32 | 4026 | Differential housing Traction-Lok |
| 33 | 4A324 | Differential clutch pack |
| 34 | - | Steel plate (part of 4947) |
| 35 | - | Friction plate (part of 4947) |
| 36 | - | Shim (part of 4947) |
| 37 | - | Belleville spring (part of 4947) |
| 38 | - | Thrust face of differential case (part of 4204) |
