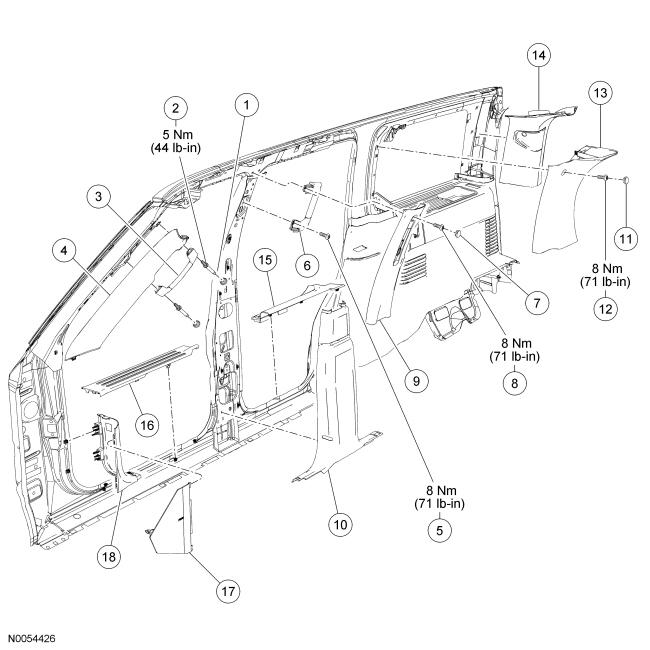

Interior Trim - Exploded View
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Expedition/Navigator shown, Expedition EL/Navigator L similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 31458 | A-pillar assist handle bolt cover (2 required) |
| 2 | W709040 | A-pillar assist handle bolt (2 required) |
| 3 | 31406A | A-pillar assist handle |
| 4 | 03598 | A-pillar trim panel |
| 5 | N611176 | Rear assist handle bolt (2 required) |
| 6 | 31406B | Rear assist handle |
| 7 | 248A55 | B-pillar trim panel bolt cover |
| 8 | N808544 | B-pillar trim panel bolt |
| 9 | 243A52B | B-pillar upper trim panel |
| 10 | 243A52A | B-pillar lower trim panel |
| 11 | 248A55 | C-pillar trim panel fastener cover |
| 12 | N808544 | C-pillar trim panel bolt |
| 12 | - | C-pillar trim panel nut (Expedition EL/Navigator L) |
| 13 | 31004 | C-pillar trim panel |
| 14 | 31010 | D-pillar trim panel |
| 15 | 13228A | Rear door scuff plate |
| 16 | 13208 | Front door scuff plate |
| 17 | 02348 | Cowl panel side trim |
| 18 | 023A98 | Cowl panel cover |
