Removal And Installation: Headliner: Removal

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

1.

NOTE: RH side shown, LH side similar.

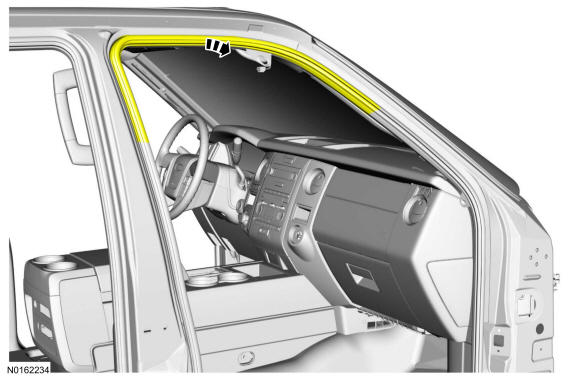

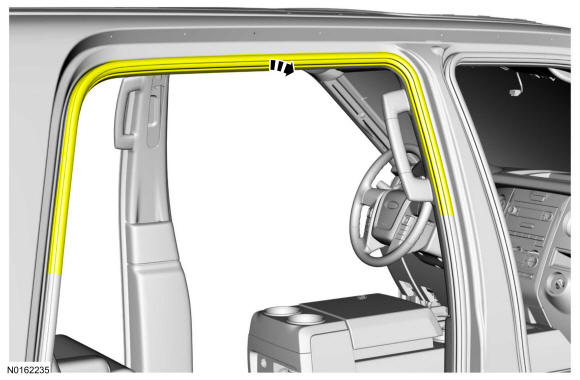

Position aside the LH and RH front door weatherstrips.

Courtesy of FORD MOTOR COMPANY

2.

NOTE: RH side shown, LH side similar.

Position aside the LH and RH rear door weatherstrips.

Courtesy of FORD MOTOR COMPANY

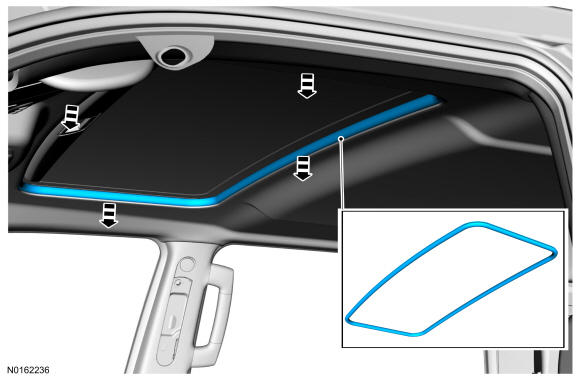

3.

If equipped, remove the roof opening panel trim ring.

Courtesy of FORD MOTOR COMPANY

4.

Remove the LH and RH A-pillar trim panels. For additional information, refer to A-Pillar Trim Panel .

5.

Release the wire harness pin-type retainer from the A-pillar.

Courtesy of FORD MOTOR COMPANY

6.

Remove the glove compartment. For additional Information, refer to Instrument Panel and Console .

7.

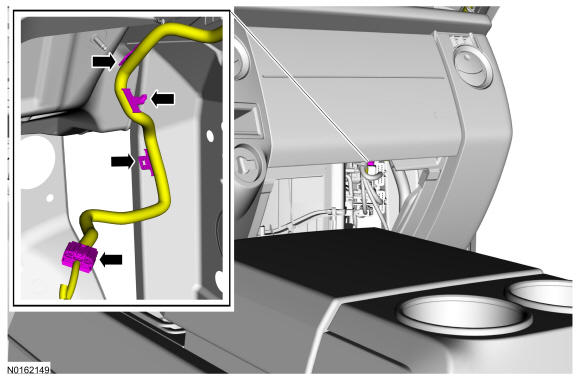

Disconnect the electrical connector and release the wire harness retainers.

Courtesy of FORD MOTOR COMPANY

8.

.

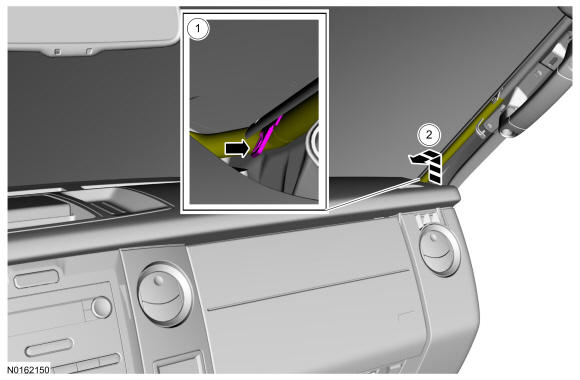

- 1.

  Release the headliner wire harness retainer.
- 2.

  Position the headliner wire harness above the instrument panel.

Courtesy of FORD MOTOR COMPANY

9.

If equipped, remove the rain sensor cover.

Courtesy of FORD MOTOR COMPANY

10.

If equipped, disconnect the rain sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

11.

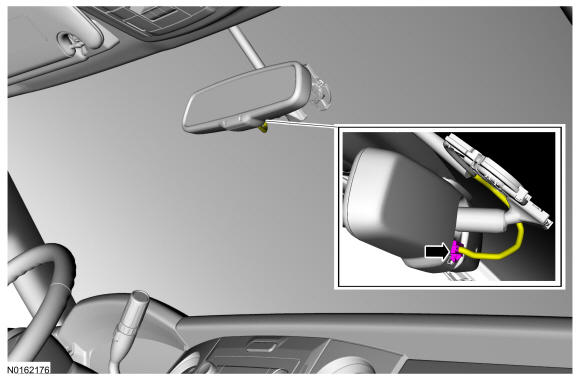

If equipped, disconnect the auto-dimming mirror electrical connector.

Courtesy of FORD MOTOR COMPANY

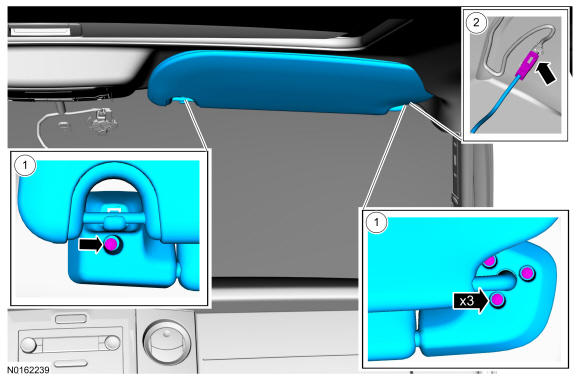

12.

NOTE: RH side shown, LH side similar.

Remove the LH and RH sun visors.
- 1.

  Remove the screws.
- 2.

  If equipped, disconnect the electrical connector and remove the sun visor.

Courtesy of FORD MOTOR COMPANY

13.

If equipped, remove the overhead console. For additional Information, refer to Instrument Panel and Console .

14.

Remove the LH and RH upper B-pillar trim panels. For additional information, refer to B-Pillar Trim Panel .

15.

Remove the LH and RH C-pillar trim panels. For additional information, refer to C-Pillar Trim Panel .

16.

Remove the LH and RH D-pillar trim panels. For additional information, refer to D-Pillar Trim Panel .

17.

NOTE: RH side shown, LH side similar.

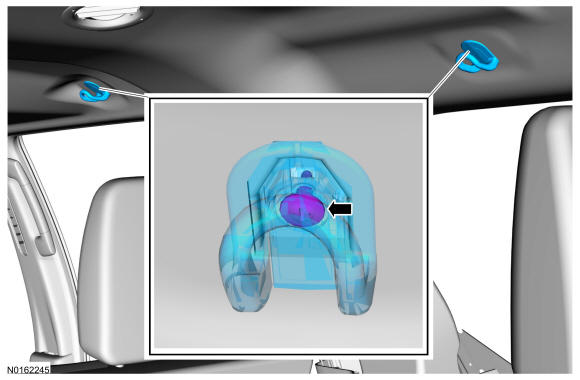

Remove the LH side and RH side garment hangers.
- Open the access panel.
- Remove the garment hanger screws.

Courtesy of FORD MOTOR COMPANY

Expedition EL/Navigator L

18.

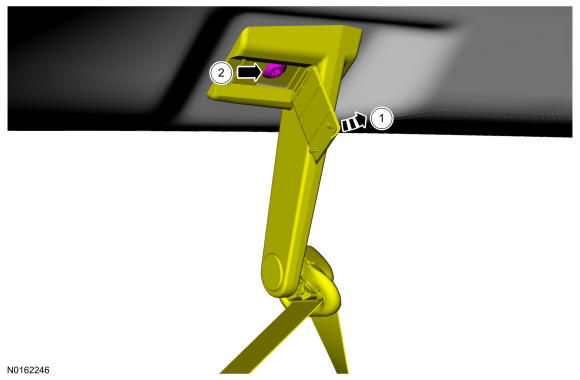

Remove the LH and the RH third row safety belt anchor bolts and position the safety belts aside.
- 1.

  Open the anchor bolt cover.
- 2.

  Remove the anchor bolt and position the safety belt aside.
  - To install, tighten to 40 Nm (30 lb-ft).

Courtesy of FORD MOTOR COMPANY

All vehicles

19.

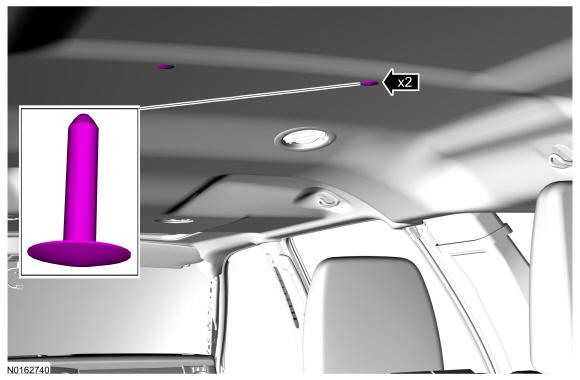

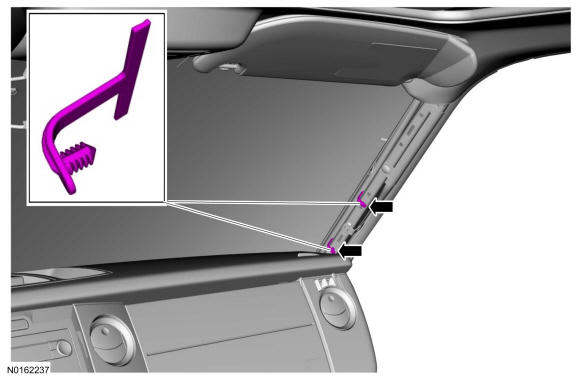

Remove the headliner center pin-type retainers.

Courtesy of FORD MOTOR COMPANY

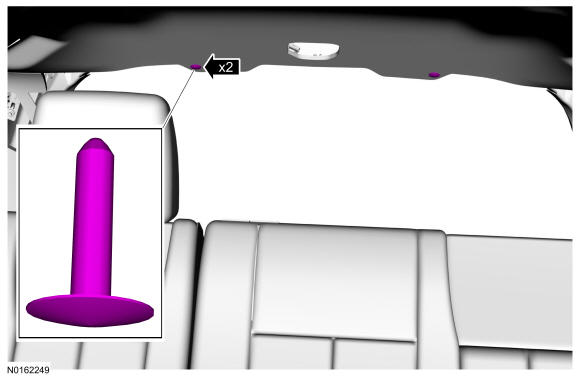

20.

Remove the headliner rear pin-type retainers.

Courtesy of FORD MOTOR COMPANY

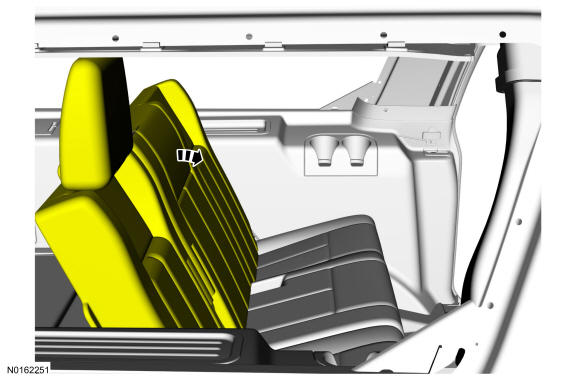

21.

Position the second row seats in the flat position.

Courtesy of FORD MOTOR COMPANY

22.

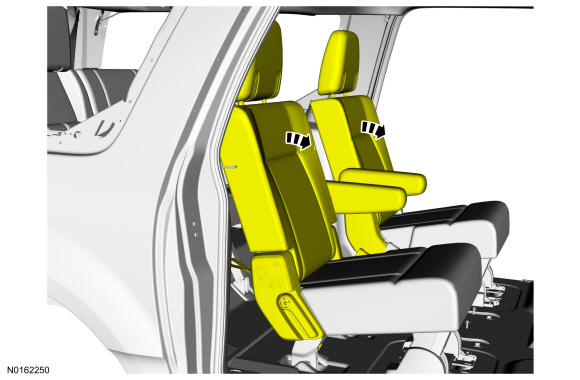

Position the third row seats in the flat position.

Courtesy of FORD MOTOR COMPANY

23.

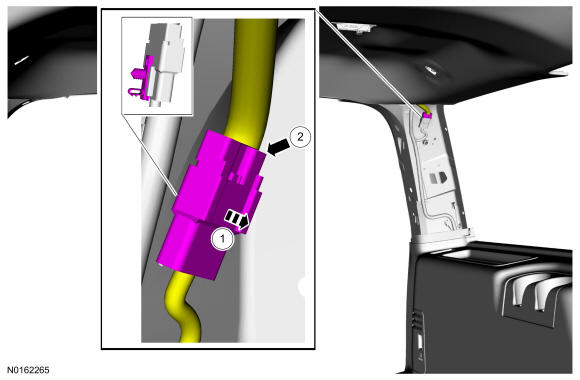

- 1.

  Detach the rear electrical connector pin-type retainer.
- 2.

  Disconnect the rear electrical connector.

Courtesy of FORD MOTOR COMPANY

Vehicles with rear climate control

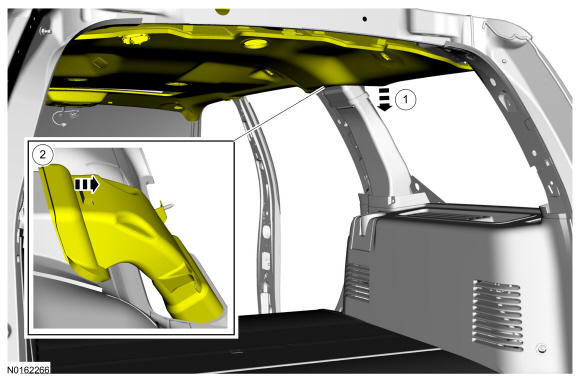

24.
- 1.

  Tilt the headliner down to gain access to the rear auxilary A/C duct.
- 2.

  Disconnect the rear auxilary a/c duct and position aside.

Courtesy of FORD MOTOR COMPANY

All vehicles

25.

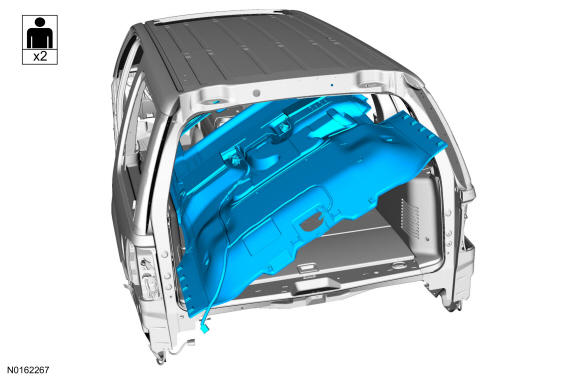

Remove the headliner.

Courtesy of FORD MOTOR COMPANY
