Door Trim Panel - Front: Notes
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

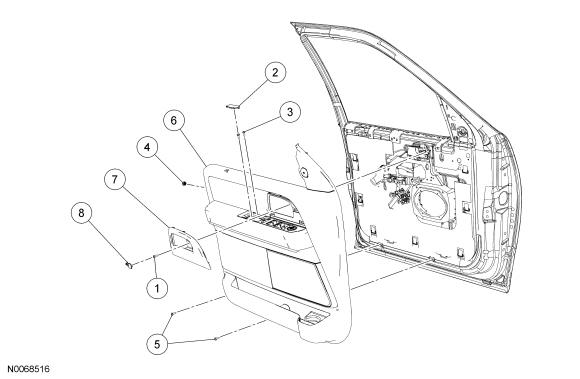

Expedition shown, Navigator, Expedition EL and Navigator L similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W505156 | Door handle screw |
| 2 | 237W10 | Front door trim panel finish cover |
| 3 | W505156 | Door trim panel armrest screw (2 required) |
| 4 | W708412 | Door trim panel screw |
| 5 | W708392 | Lower door trim panel screws (2 required) |
| 6 | 23942 RH/ 23943 LH RH/ 23943 LH | Front door trim panel |
| 7 | 7822670 | Door handle trim bezel |
| 8 | 78237W10 | Door handle screw cover |
