Power Mirrors

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

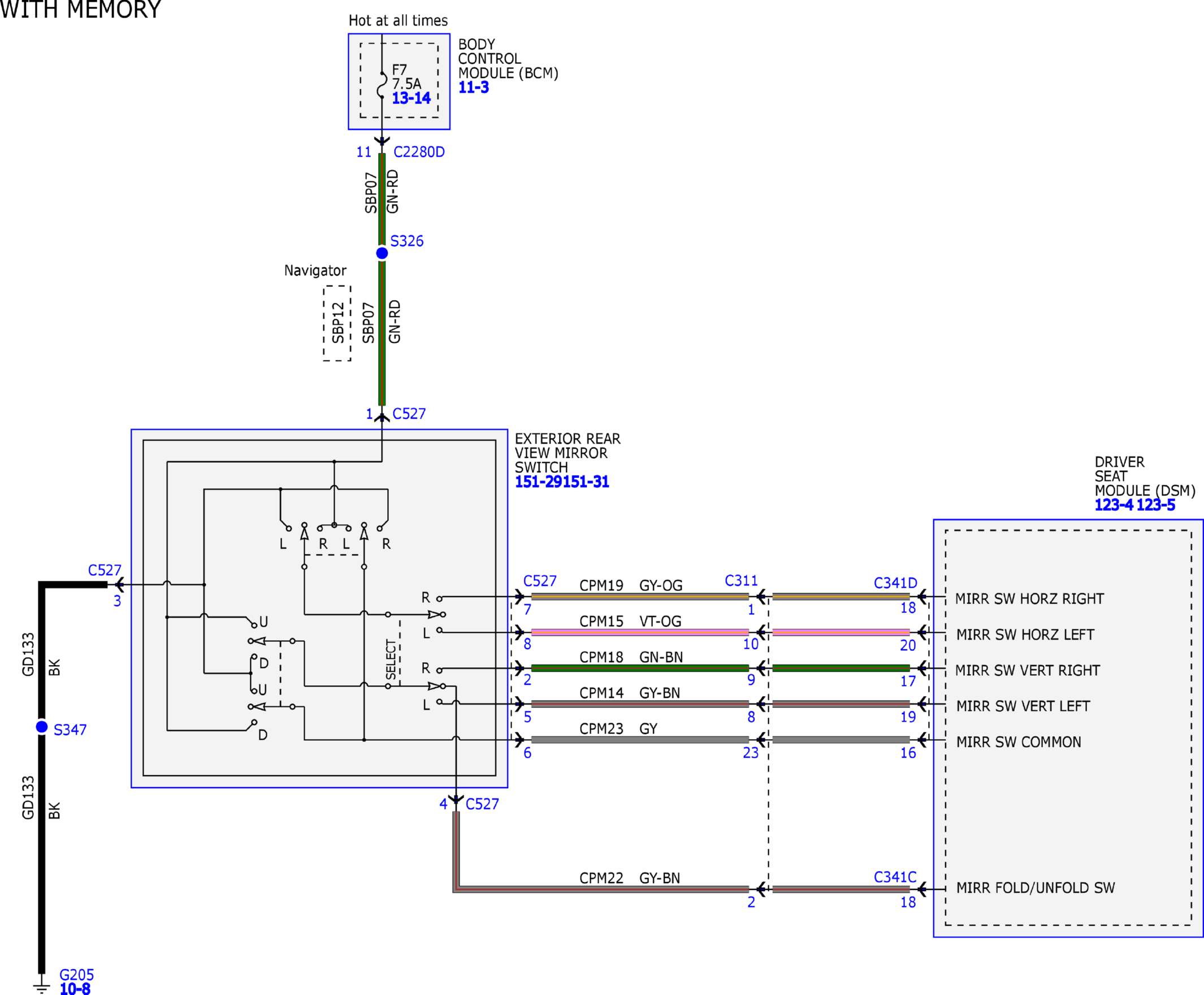

Fig 1: Power Mirrors Wiring Diagram (1 of 7)

Courtesy of FORD MOTOR COMPANY

Fig 2: Power Mirrors Wiring Diagram (2 of 7)

Courtesy of FORD MOTOR COMPANY

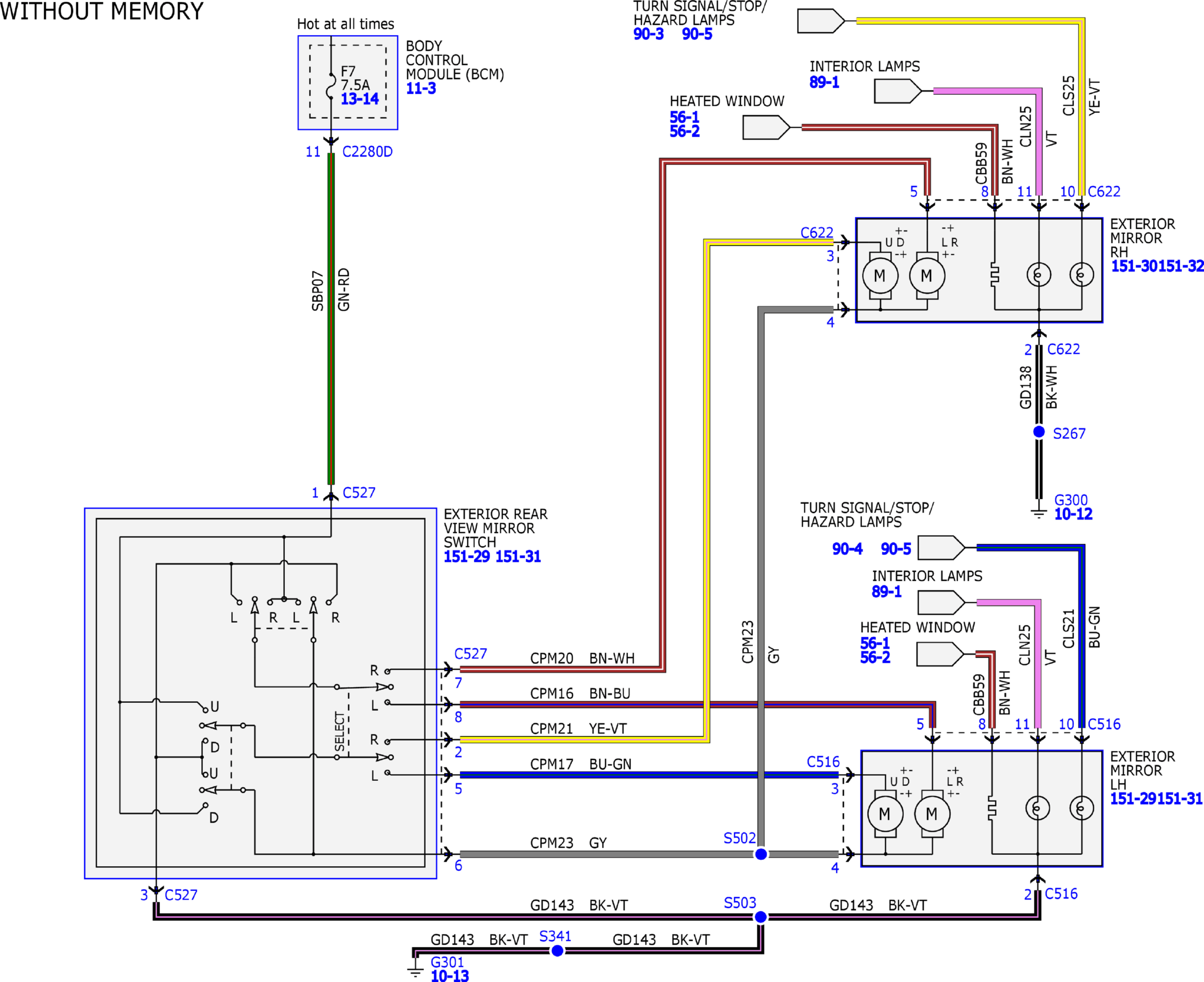

Fig 3: Power Mirrors Wiring Diagram (3 of 7)

Courtesy of FORD MOTOR COMPANY

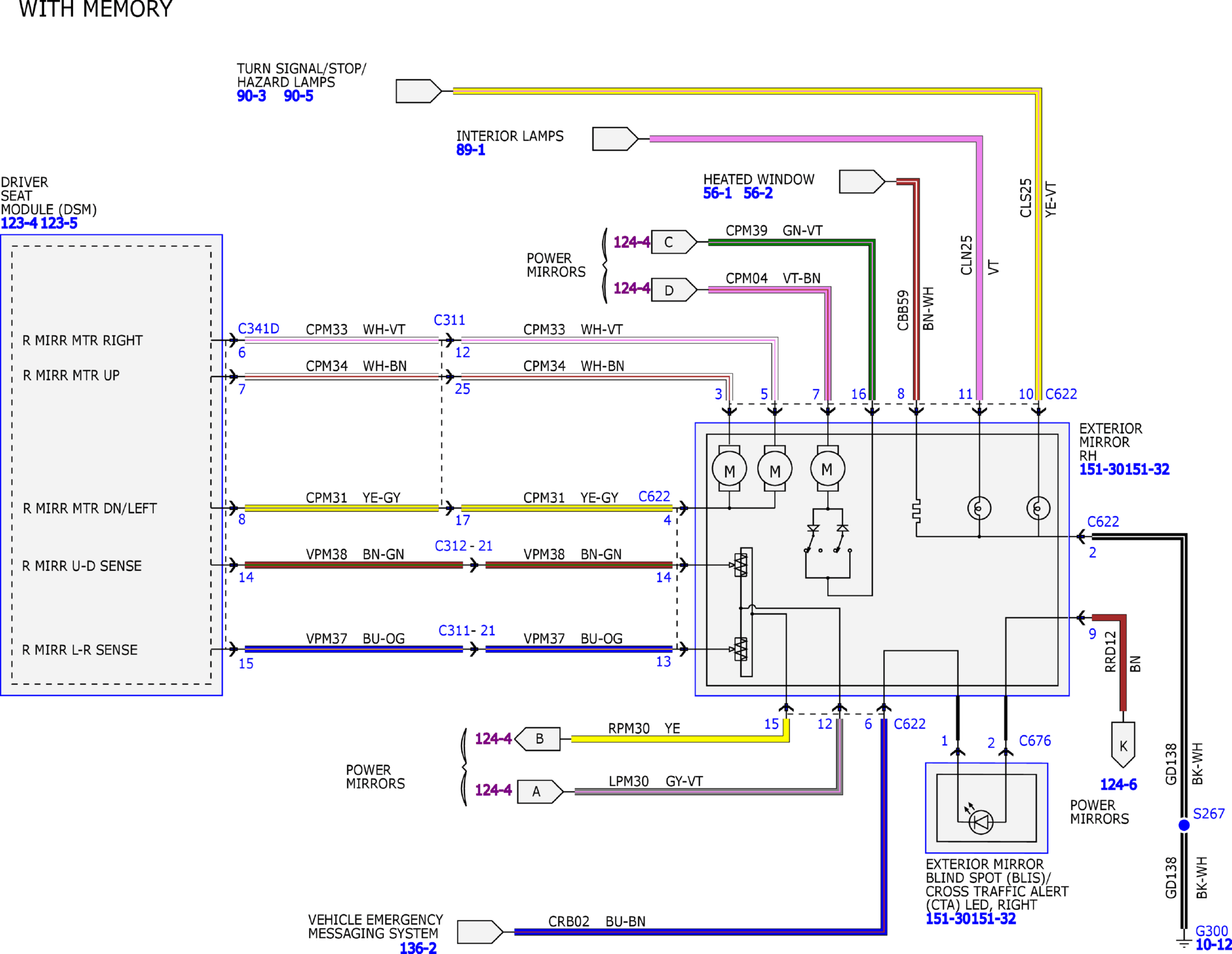

Fig 4: Power Mirrors Wiring Diagram (4 of 7)

Courtesy of FORD MOTOR COMPANY

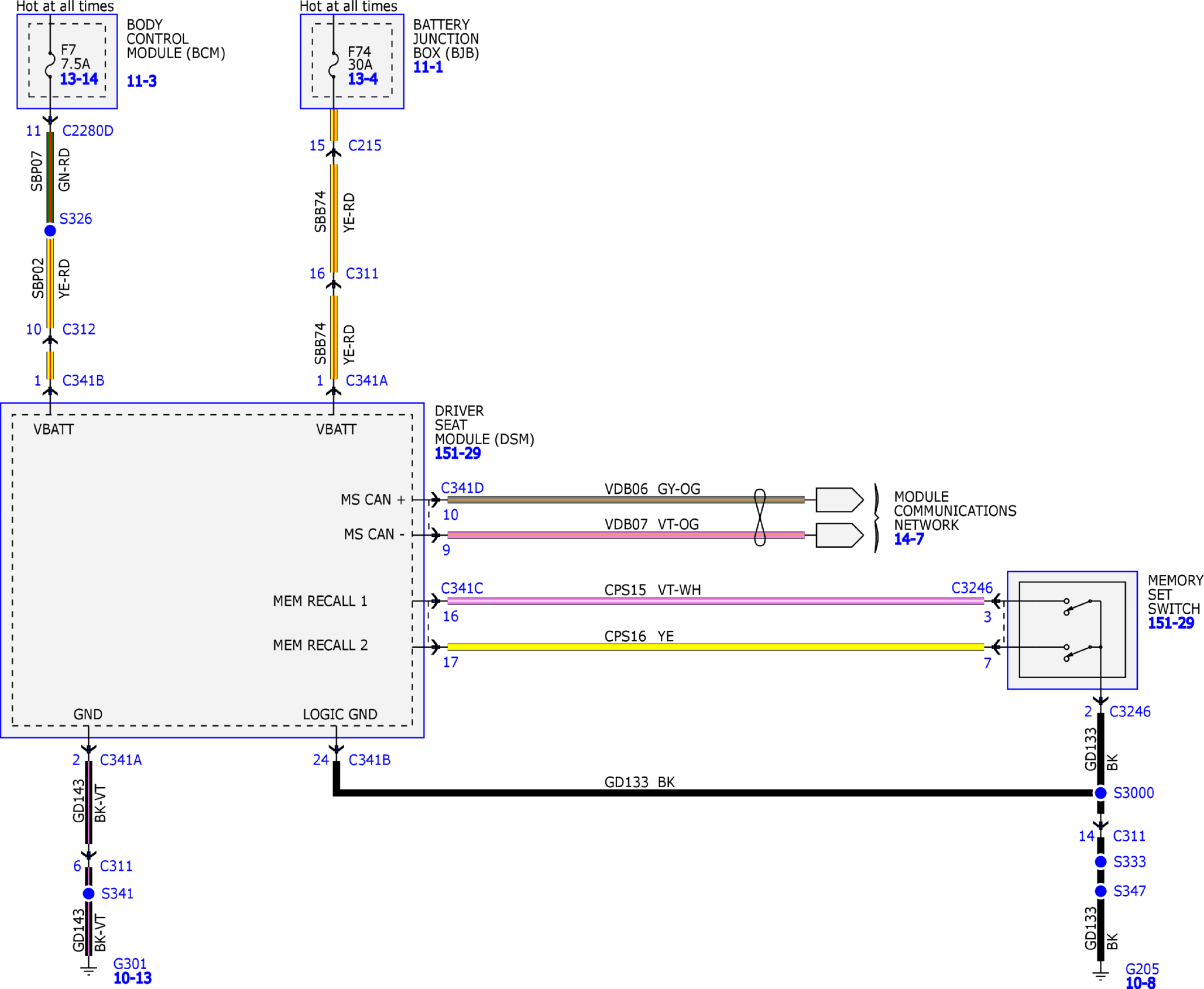

Fig 5: Power Mirrors Wiring Diagram (5 of 7)

Courtesy of FORD MOTOR COMPANY

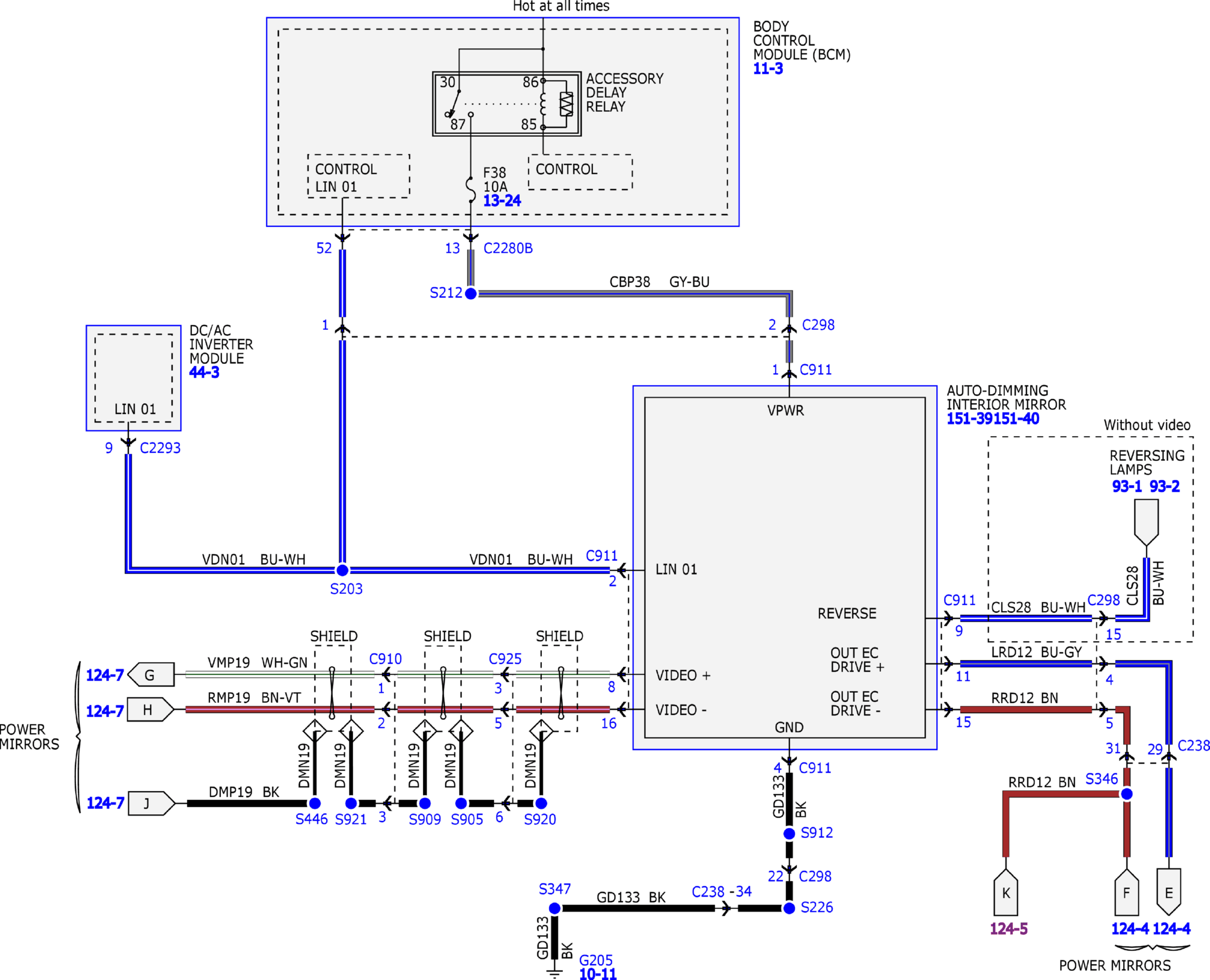

Fig 6: Power Mirrors Wiring Diagram (6 of 7)

Courtesy of FORD MOTOR COMPANY

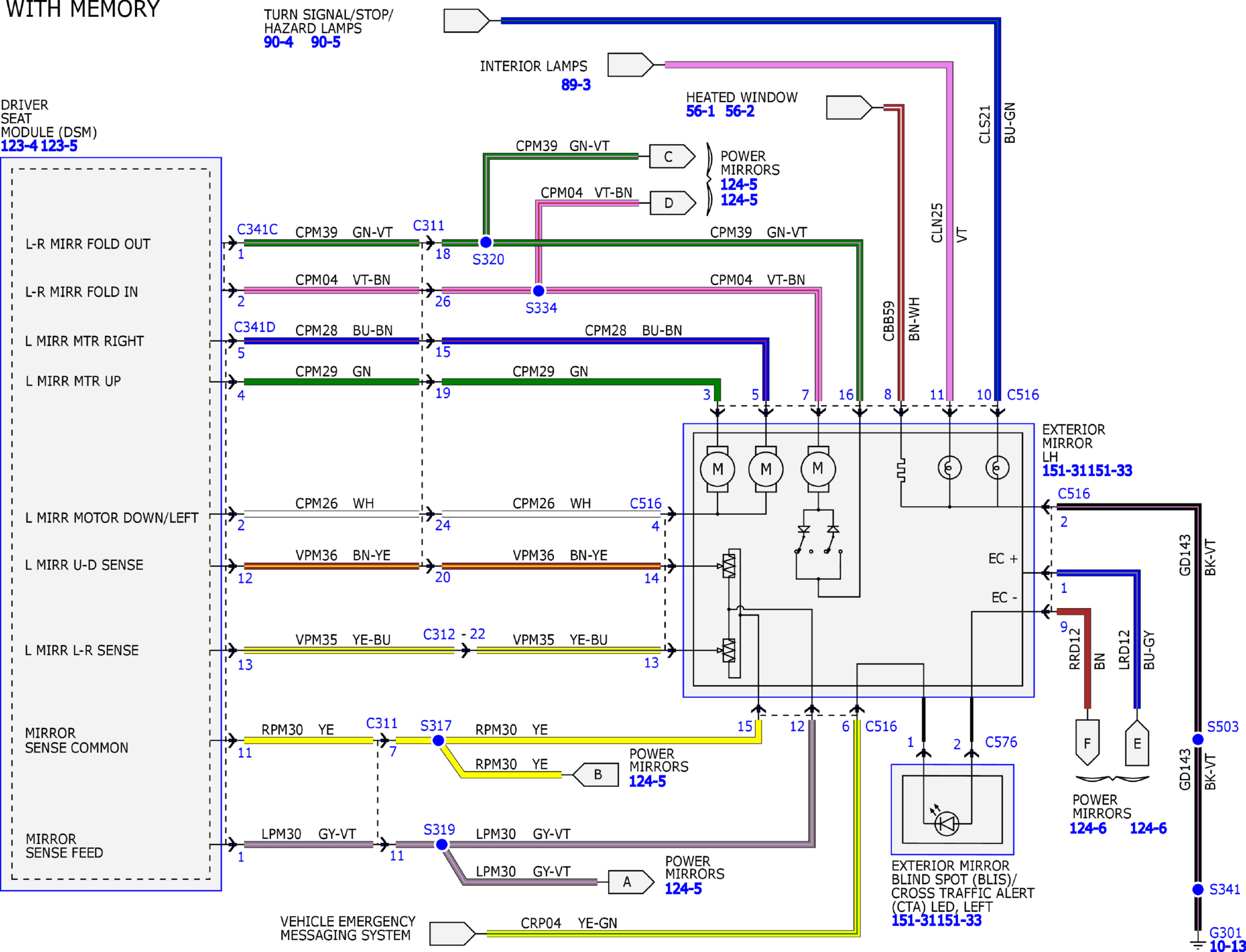

Fig 7: Power Mirrors Wiring Diagram (7 of 7)

Courtesy of FORD MOTOR COMPANY
