Audio System

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

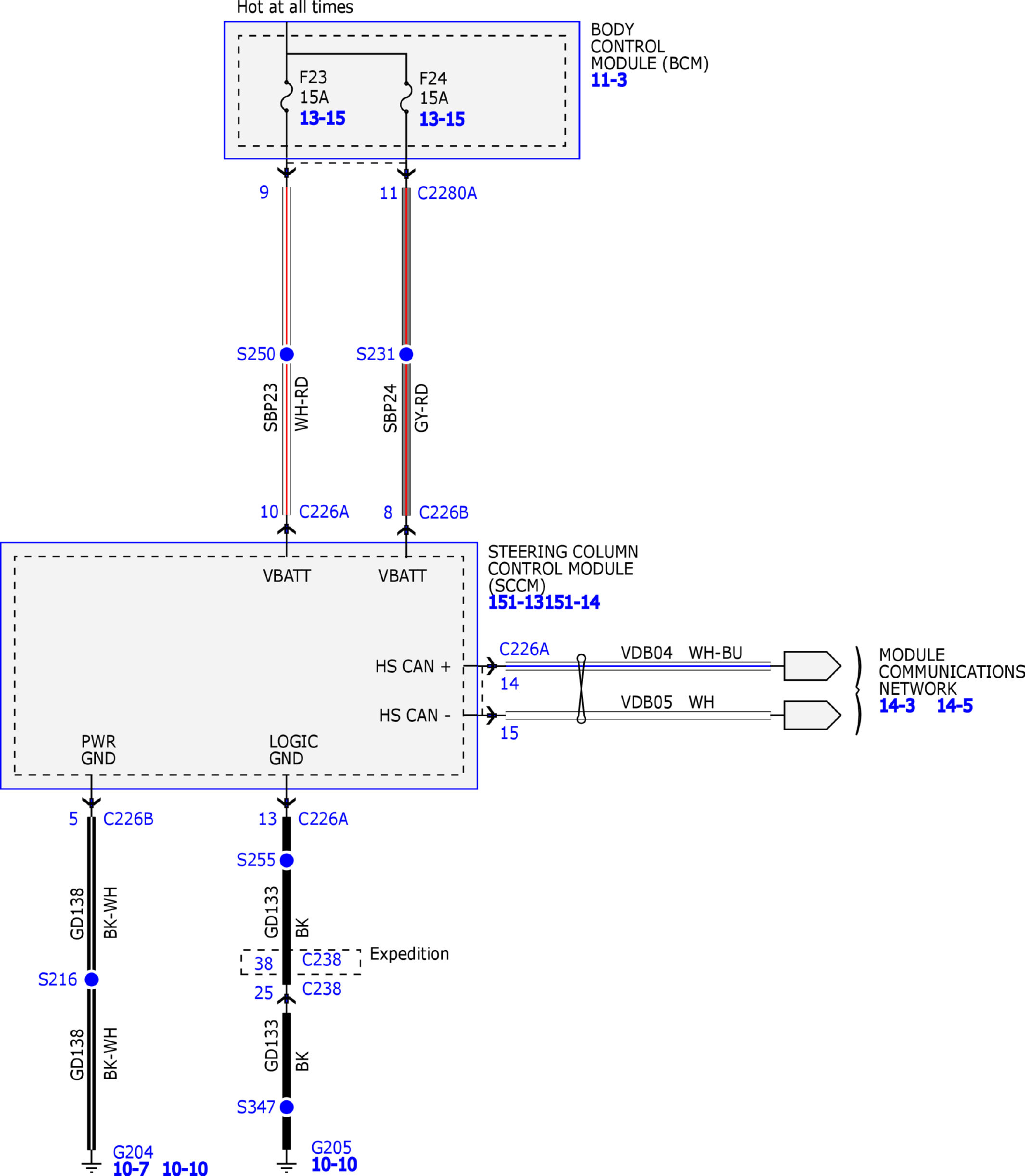

Fig 1: Audio System Wiring Diagram (1 of 3)

Courtesy of FORD MOTOR COMPANY

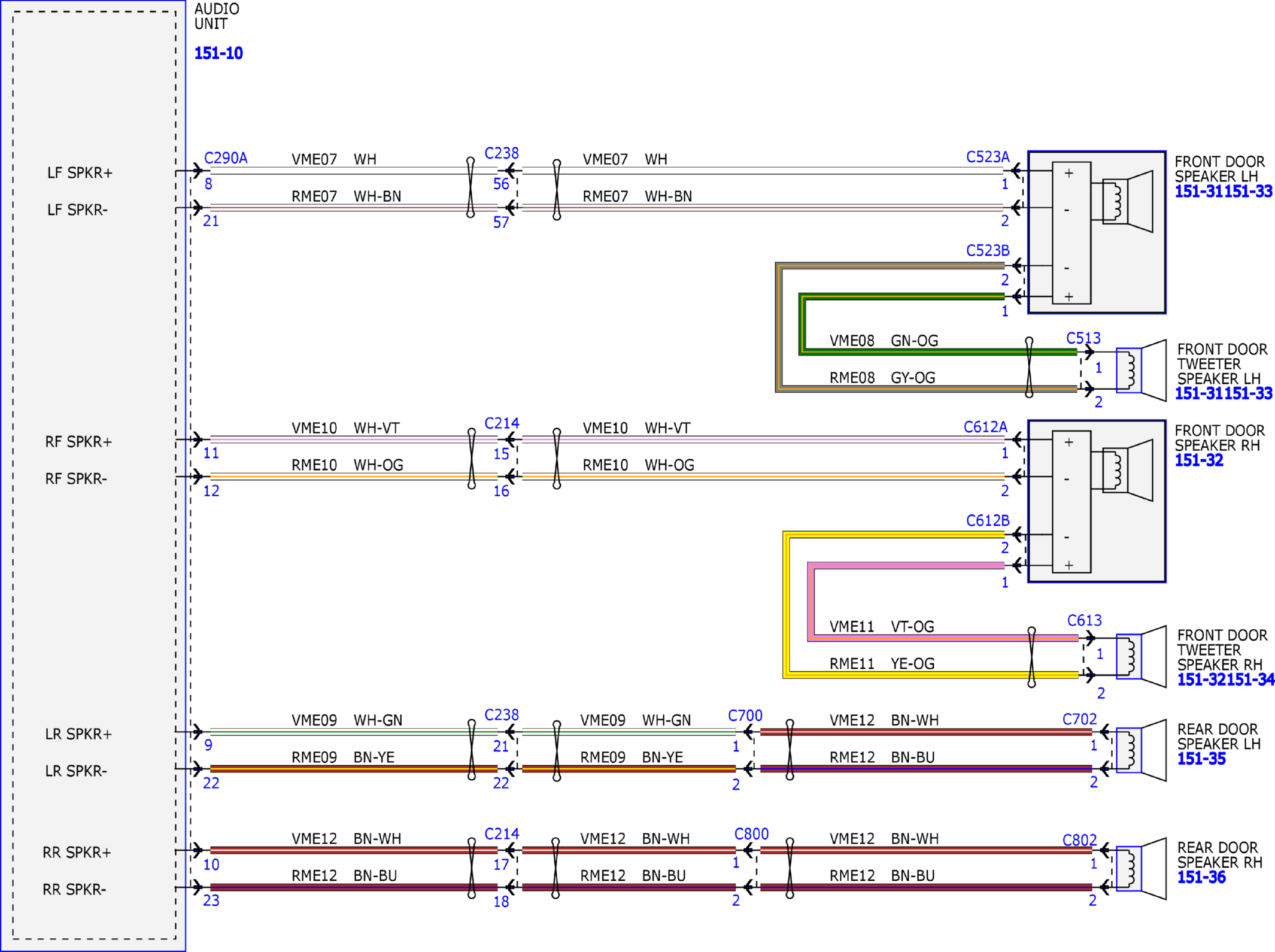

Fig 2: Audio System Wiring Diagram (2 of 3)

Courtesy of FORD MOTOR COMPANY

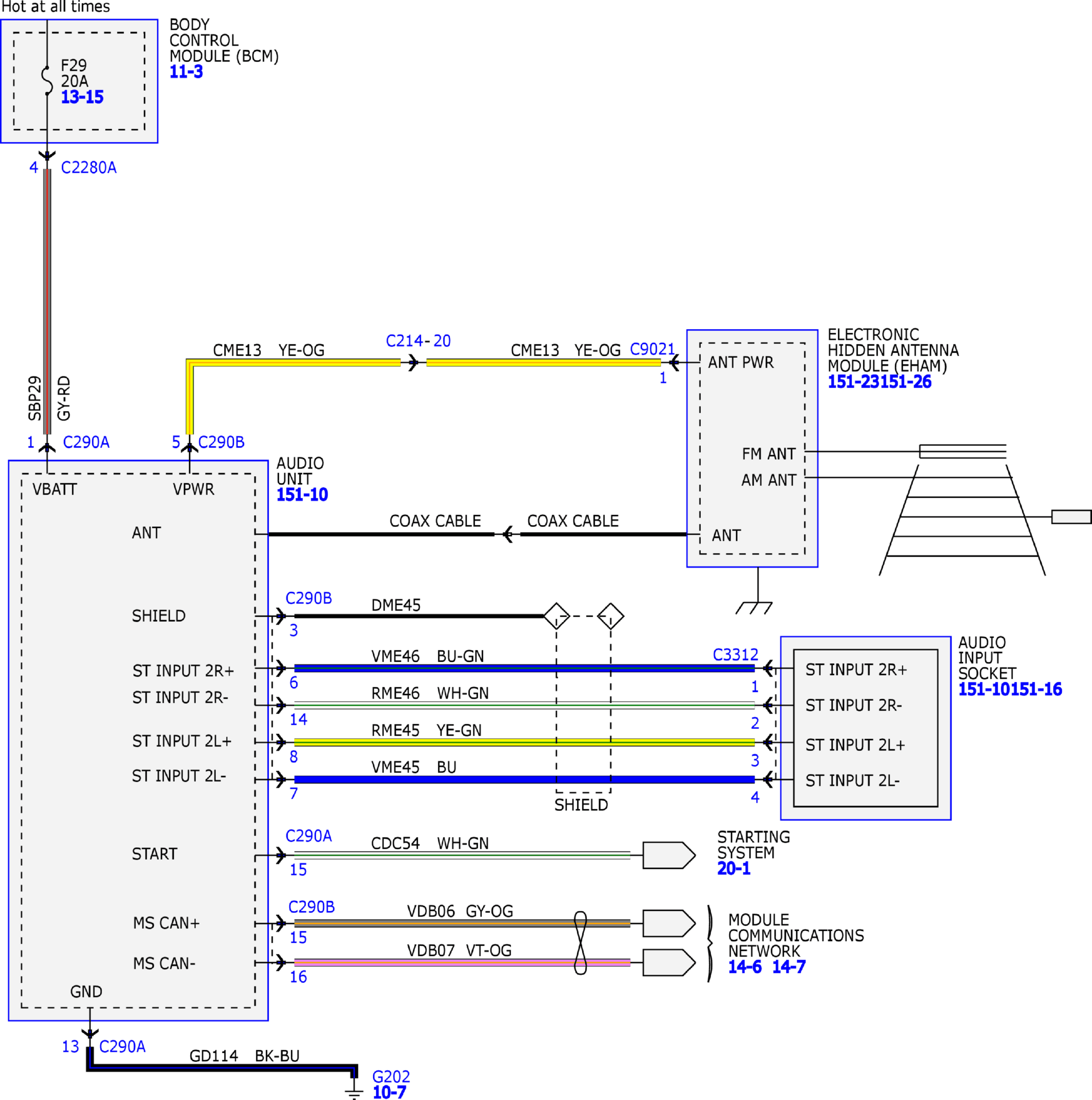

Fig 3: Audio System Wiring Diagram (3 of 3)

Courtesy of FORD MOTOR COMPANY
