Power Running Board (PRB) Module: Notes

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

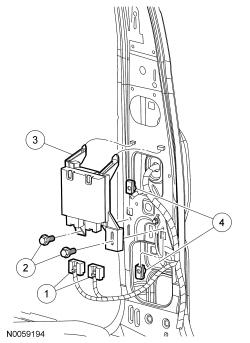

GFD137254Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 - Electrical connectors
2 W506404 Power Running Board(PRB) module retaining bolts (2 required)
3 14C177 PRB module assembly
4 W520821 U-nuts (2 required)
