Liftgate Moulding
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
All Vehicles
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Remove the liftgate trim panel. Refer to Interior Trim and Ornamentation .

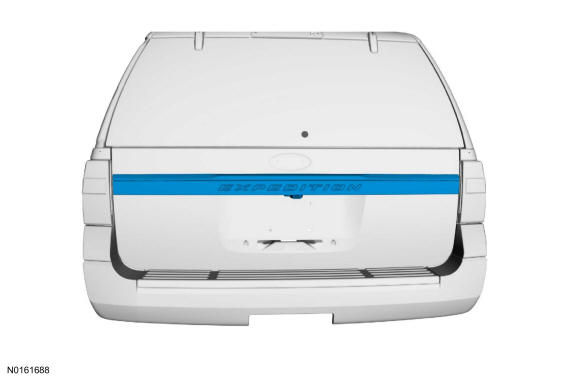

Expedition
- 2.

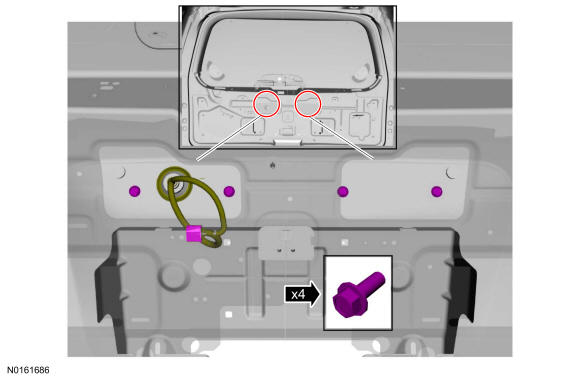

Disconnect the electrical connector and remove the four screws.- To install, tighten to 2.5 Nm (22 lb-in.).
- 3.NOTE: Use caution to avoid damaging the moulding when removing the pushpins.

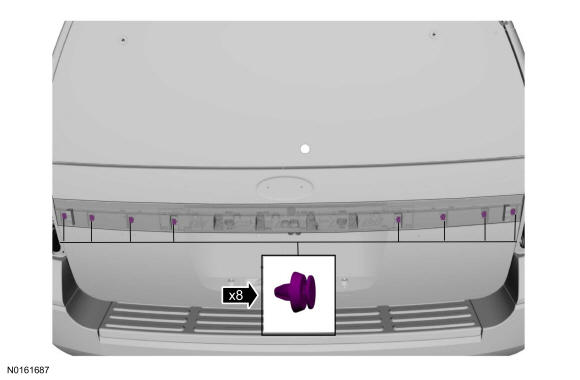

Disengage the eight pushpin retainers from the liftgate.

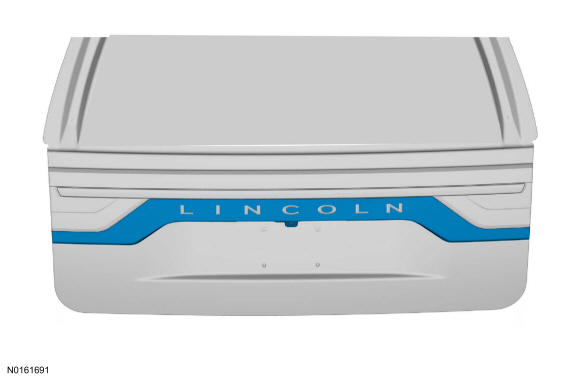

Navigator
- 5.

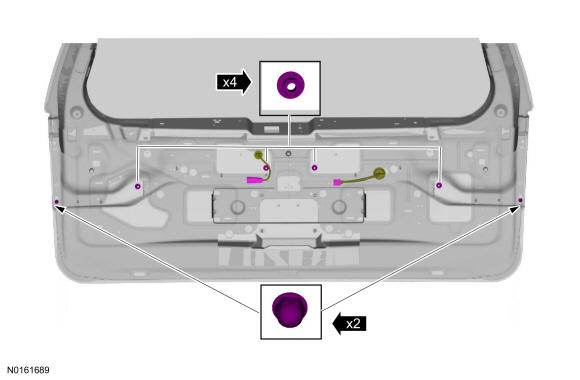

Disconnect the electrical connectors and remove the six nuts.- To install, tighten to 2.5 Nm (22 lb-in.).
- 6.NOTE: Use caution to avoid damaging the moulding when removing the pushpins.

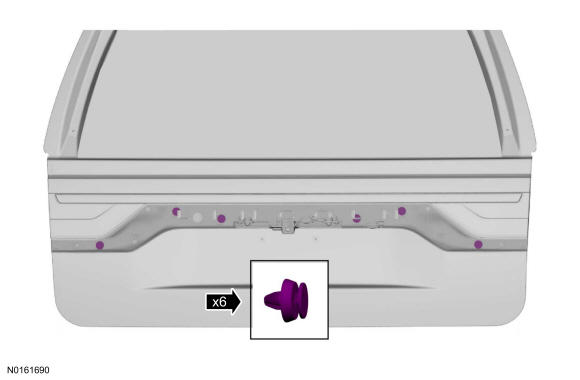

Disengage the six pushpin retainers from the liftgate.
All Vehicles
